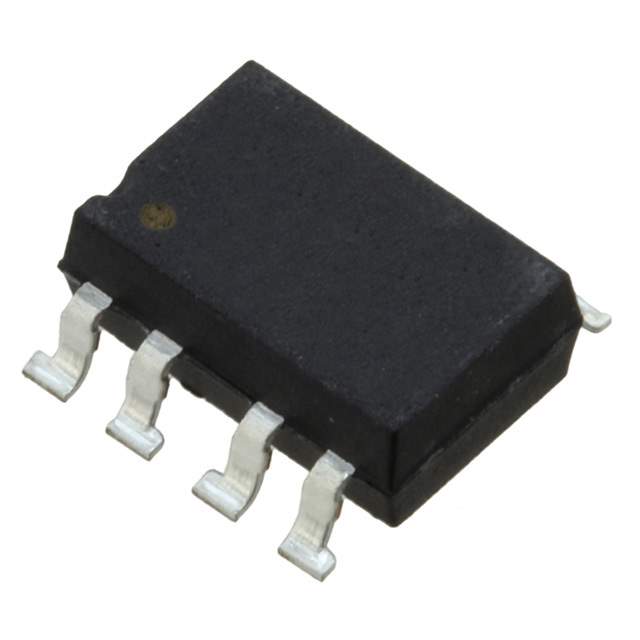

LH1526AAC

Part No LH1526AAC
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-8 SSR DUAL 1 FORM A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 25 Ohm
Load Current 100mA
Voltage - Input 1.15VDC
Voltage - Load 0 to 400 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 1052512-LH1526AAC
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LH1526AAC CAD Model

Description

The Vishay LH1526AAC is a DPST (2 Form A) relay used in a variety of electronic applications.

  • Relay Type: DPST (2 Form A)
  • Voltage Input: 1.15VDC
  • Load Current: 100mA
  • Voltage Load Range: 0 to 400V
  • Termination Style: Gull Wing
  • Packaging: 8-SMD
  • Application: surface-mount applications
