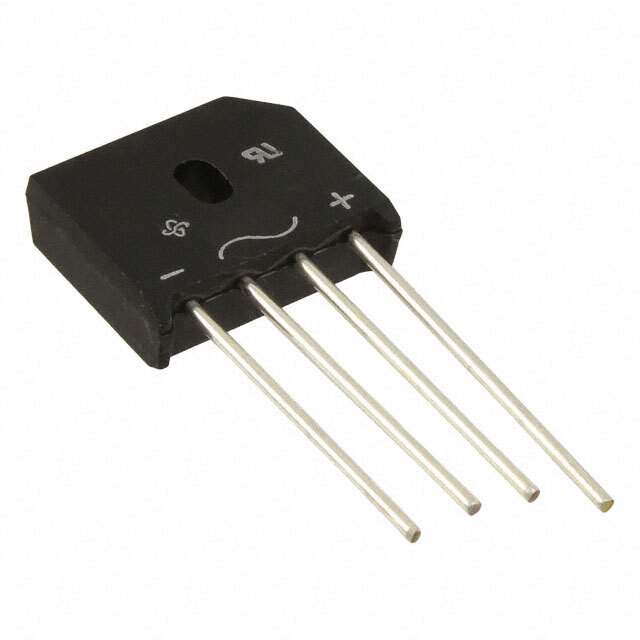

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 1V @ 4A
Current - Reverse Leakage @ Vr 5μA @ 200V
Temperature Range - Operating -50°C to 150°C (TJ)
Mounting Through Hole
Case / Package KBU
Win Source Part Number 002146-KBU4D-E4/51
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KBU4D-E4/51 CAD Model

Description

The electronic component with Id 176060 is a single-phase standard diode manufactured by Vishay.

  • Current Average Rectified (Io): 4A
  • Voltage Forward (Vf) (Max) @ If: 1V @ 4A
  • Current Reverse Leakage @ Vr: 5μA @ 200V
  • Voltage Peak Reverse (Max): 200V
  • Category: discrete semiconductor products
  • Status: currently active
  • Operating Temperature Range: -50°C to 150°C (TJ)
  • Package: KBU
  • Supply and Demand Status: limited
