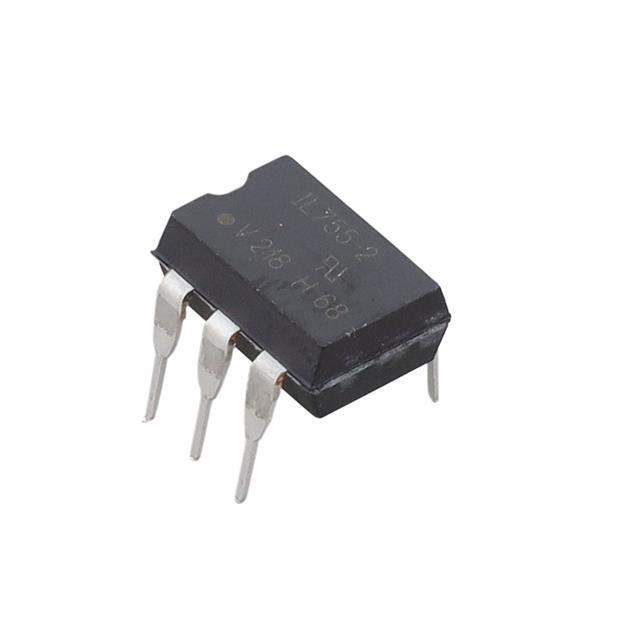

IL755-2 Real Image
Same model may have multiple batches, images only for reference.

IL755-2

Part No IL755-2
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler, Photodarlington Output, AC Input, High Gain (Single, Dual Channel)
Datasheet
IL755-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay Semiconductor Opto Division
Packaging Tube
Number of Channels 1
Voltage - Isolation 5300Vrms
Current Transfer Ratio (Minimum) 1000% @ 1mA
Rise / Fall Time (Typ) 70μs, 70μs
Input Type AC, DC
Output Type Darlington with Base
Output Voltage MAX 60V
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 1V
Operating Temperature Range -55°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300", 7.62mm)
Manufacturer Package 6-DIP
RoHS State Request Verification
Win Source Part Number 1185448-IL755-2
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name IL755
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian IL755-2 CAD Model

Description

The IL755-2 from Vishay Semiconductor Opto Division is a Darlington output optocoupler with a base connection.

  • Input Type: AC or DC
  • Forward Voltage: 1.2V
  • Current Transfer Ratio: 1000% @ 1mA
  • Voltage Isolation: 5300Vrms
  • Rise and Fall Time: 70μs
  • Vce Saturation: 1V (Maximum)
  • Package: 6-DIP
  • Operating Temperature Range: -55°C to 100°C
  • Applications: Isolator
