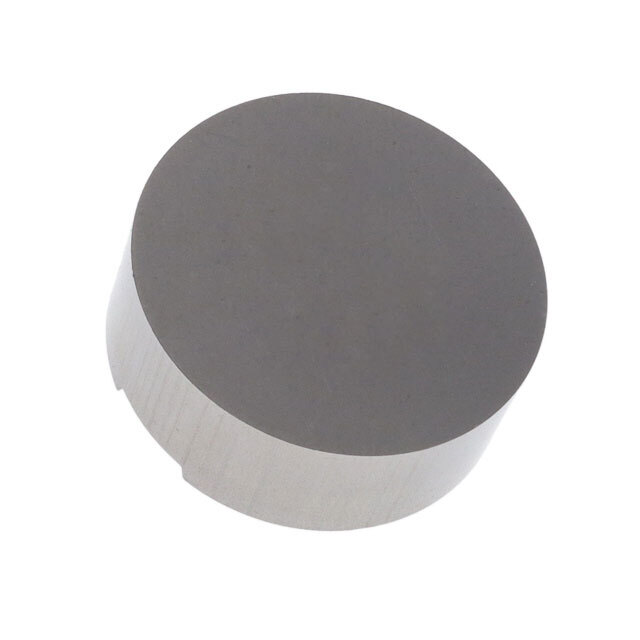

Same model may have multiple batches, images only for reference.

IHTH1125KZEB2R2M5A

Name: IHTH1125KZEB2R2M5A
Brand: Vishay
SKU: 1532486
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IHTH1125KZEB2R2M5A
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 72A 0.77 MOHM TH
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Material - Core	Metal Composite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	72 A
Current - Saturation (Isat)	64A
Shielding	Shielded
DC Resistance (DCR)	0.77mOhm Max
Frequency - Self Resonant	17.25MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting Type	Through Hole
Case / Package	Radial, Vertical Cylinder
Size / Dimension	1.125" Dia (28.58mm)
Height - Seated (Max)	0.433\
Package	Bulk
Supply and Demand Status	Shortage
Win Source Part Number	1532486-IHTH1125KZEB2R2M5A
