Same model may have multiple batches, images only for reference.

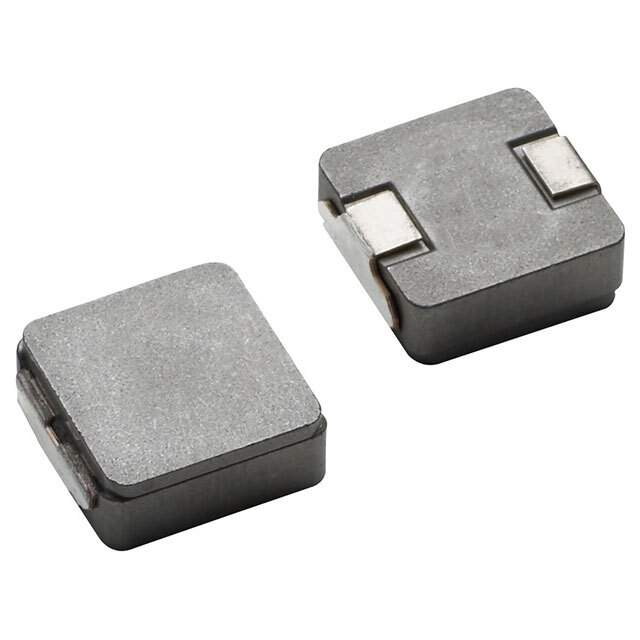

IHLP4040DZER100M1A Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER100M1A

Part No IHLP4040DZER100M1A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-4040DZ-1A 10 20% ER E3 / 10 µH Shielded Inductor 7.5 A 30.5mOhm Max Nonstandard
Datasheet
IHLP4040DZER100M1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-4040DZ-1A
Package Tape & Reel
Material - Core Metal Composite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 7.5 A
Current - Saturation (Isat) 7.1A
Shielding Shielded
DC Resistance (DCR) 30.5mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.425" L x 0.400" W (10.80mm x 10.16mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 541-IHLP4040DZER100M1ADKR,541-IHLP4040DZER100M1ATR,541-IHLP4040DZER100M1ACT
Standard Package 500
Win Source Part Number 1000312-IHLP4040DZER100M1A
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER100M1A CAD Model

Description

The IHLP4040DZER100M1A is a shielded fixed inductor from Vishay Dale.

  • Inductance: 10 µH
  • Maximum DC Resistance (DCR): 30.5mOhm
  • Current Rating: 7.5A
  • Tolerance: ±20%
  • Application: AEC-Q200 Rated
  • Package: Non-Standard
  • Temperature Range: -55°C to 125°C
