Same model may have multiple batches, images only for reference.

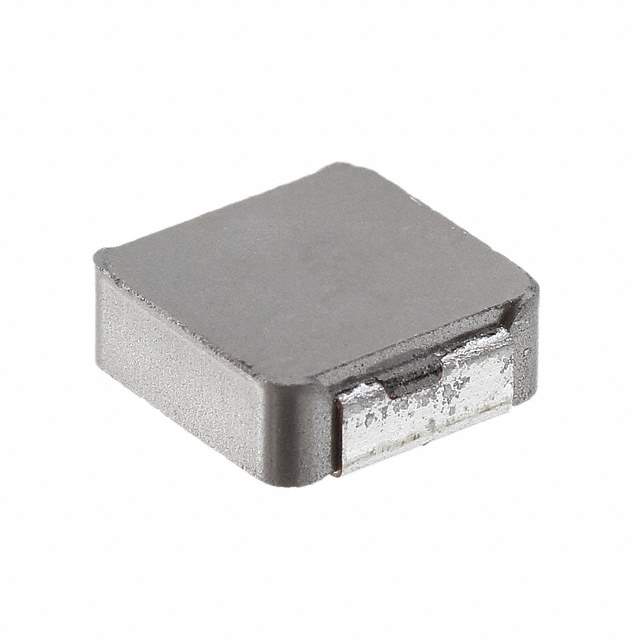

IHLP3232CZER4R7M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP3232CZER4R7M11

Part No IHLP3232CZER4R7M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 4.7UH 7.6A 28.6MOHM SM / 4.7 µH Shielded Molded Inductor 7.6 A 28.6mOhm Max Nonstandard
Datasheet
IHLP3232CZER4R7M11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vishay Dale
Series IHLP-3232CZ-11
Package Tape & Reel
Type Molded
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 7.6 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 28.6mOhm Max
Frequency - Self Resonant 21MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names IHLP3232CZER4R7M11-ND,541-IHLP3232CZER4R7M11DKR,541-IHLP3232CZER4R7M11CT,541-IHLP3232CZER4R7M11TR
Standard Package 1,000
Win Source Part Number 1140005-IHLP3232CZER4R7M11
Ultra Librarian 3D Model Ultra Librarian IHLP3232CZER4R7M11 CAD Model

Description

The Vishay Dale Fixed Inductors are high-quality electronic components that are ideal for use in various electronic devices.

  • Type: molded
  • Packaging: tape and reel
  • Shielded: Yes
  • Inductance: 4.7 µH
  • Height: 0.118 inches (3.00mm)
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • DC Resistance (DCR): 28.6mOhm Max
  • Current Rating: 7.6 A
  • Temperature Range: -55°C ~ 125°C
  • Dimensions: 0.340 inches L x 0.322 inches W (8.64mm x 8.18mm)
