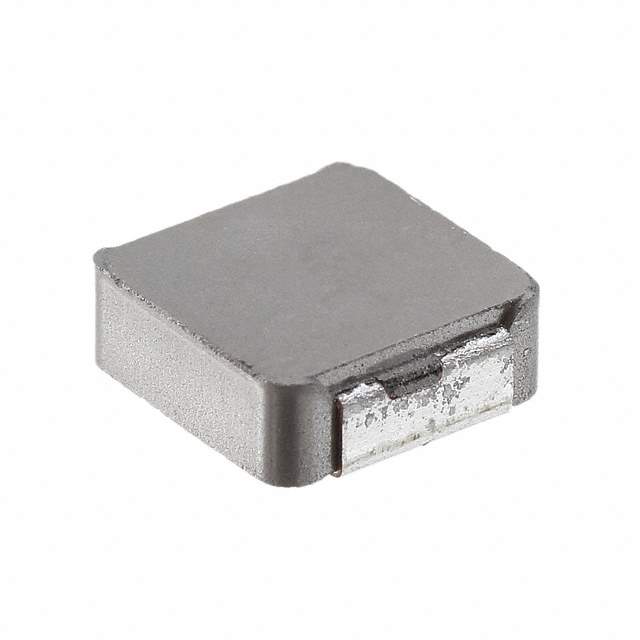

Same model may have multiple batches, images only for reference.

IHLP3232CZER100M01

Name: IHLP3232CZER100M01
Brand: Vishay
SKU: 998381
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP3232CZER100M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 10UH 4.7A 71.2MOHM SMD / 10 µH Shielded Molded Inductor 4.7 A 71.2mOhm Max Nonstandard
Datasheet	IHLP3232CZER100M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-3232CZ-01
Package	Tape & Reel
Type	Molded
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	4.7 A
Current - Saturation (Isat)	8.2A
Shielding	Shielded
DC Resistance (DCR)	71.2mOhm Max
Frequency - Self Resonant	15MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	541-2589-2,IHLP3232CZER100M01-ND,541-2589-1,541-2589-6
Standard Package	1,000
Win Source Part Number	998381-IHLP3232CZER100M01
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZER100M01 CAD Model

Alternative Products

Description

The Vishay IHLP3232CZER100M01 is a fixed inductor with a molded type and a shielding feature.

Inductance: 10µH
Tolerance: ±20%
Maximum DC Resistance: 71.2mOhm
Current Rating: 4.7A
Self-Resonant Frequency: 15MHz
Mounting: SMD (SMT)
Series: IHLP-3232CZ-01
Package: Tape and Reel
Operating Temperature Range: -55°C to 125°C
Classification: EAR99
MSL Level: 1 (unlimited)
HTSUS Code: 8504.50.4000
