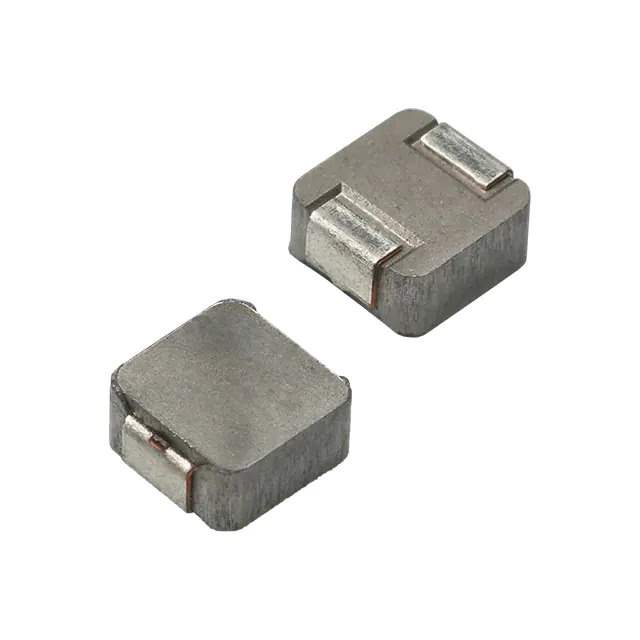

IHLP1616BZER1R0M1A Real Image
Same model may have multiple batches, images only for reference.

IHLP1616BZER1R0M1A

Part No IHLP1616BZER1R0M1A
Manufacturer Vishay
Catalog Fixed Inductors
Description IHLP-1616BZ-1A 1 20% ER E3
Datasheet
IHLP1616BZER1R0M1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Vishay
Series IHLP-1616BZ-1A
Package Tape & Reel
Product Status Active
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 5A
Shielding Shielded
DC Resistance (DCR) 27mOhm Max
Frequency - Self Resonant 64MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 156072-IHLP1616BZER1R0M1A
Ultra Librarian 3D Model Ultra Librarian IHLP1616BZER1R0M1A CAD Model

Description

The 156072-IHLP1616BZER1R0M1A is an active fixed inductor from Vishay.

  • Inductance: 1µH
  • Tolerance: ±20%
  • Application: Automotive
  • Rating: AEC-Q200
  • Size: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Height: 0.079" (2.00mm)
  • Core: Metal composite core
  • DC Resistance: 27mOhm max
  • Temperature Range: -55°C to 125°C
