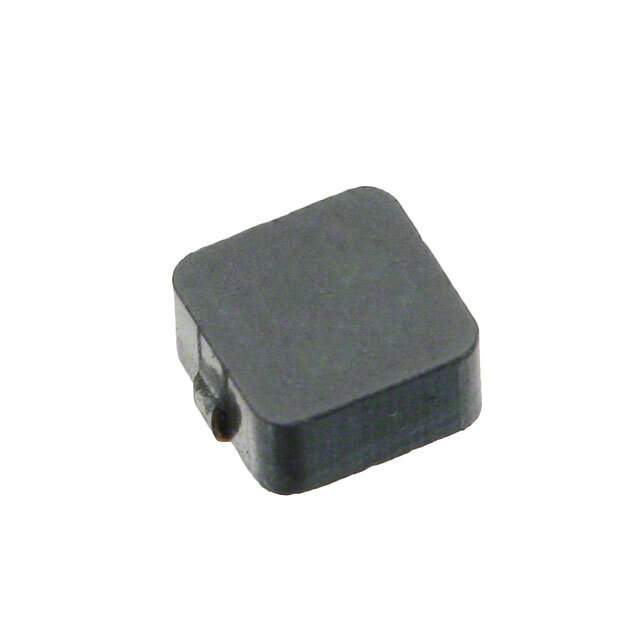

IHLP1212ABERR56M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP1212ABERR56M11

Part No IHLP1212ABERR56M11
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 560NH 5.1A 22 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Dale
Packaging Reel
Type Molded
Inductance 560nH
Tolerance ±20%
Current Rating (Amps) 5.1A
Current - Saturation 6.7A
Shielding Shielded
DC Resistance (DCR) 22mOhm Max
Frequency - Self Resonant 135MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810103-IHLP1212ABERR56M11
Ultra Librarian 3D Model Ultra Librarian IHLP1212ABERR56M11 CAD Model

Description

The Vishay Dale IHLP1212ABERR56M11 is a molded type surface mount device that comes in reel packaging.

  • Supply & Demand Status: Limited
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
  • Inductance: 560nH, Tolerance ±20%
  • Saturation Current: 6.7A
  • Self-Resonant Frequency: 135MHz
  • DC Resistance (DCR): 22mOhm Max
  • Dimension: 0.144" L x 0.118" W (3.65mm x 3.00mm)
  • Manufacturer Package: Nonstandard
