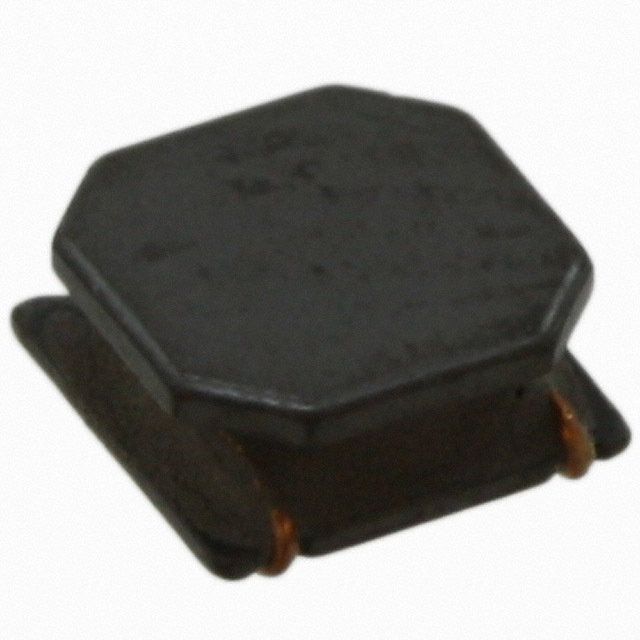

Same model may have multiple batches, images only for reference.
IFSC1515AHER220M01 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

IFSC1515AHER220M01

Part No IFSC1515AHER220M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 22UH 1.2A 315 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Active
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 830mA
Shielding Shielded
DC Resistance (DCR) 315mOhm Max
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.075\
Ultra Librarian 3D Model Ultra Librarian IFSC1515AHER220M01 CAD Model
