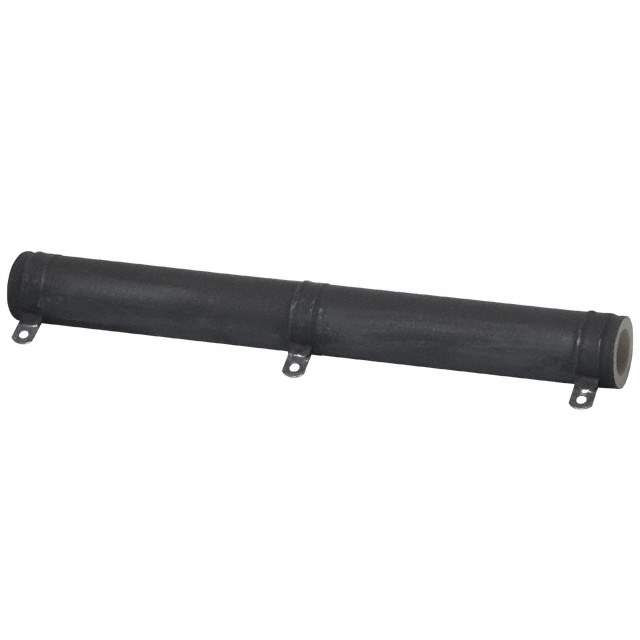

HLT22507Z100R0KJ Real Image
Same model may have multiple batches, images only for reference.

HLT22507Z100R0KJ

Part No HLT22507Z100R0KJ
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 100 OHM 10% 225W
Datasheet
HLT22507Z100R0KJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Resistance (Ohms) 100
Tolerance ±10%
Power (Watts) 225W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C to 350°C
Coating, Housing Type Silicone Coated
Mounting Feature Brackets (not included)
Lead Style Solder Lugs
Dimension Radial, Tubular
Win Source Part Number 1043571-HLT22507Z100R0KJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HLT22507Z100R0KJ CAD Model

Description

The Vishay is a wirewound resistor with a resistance of 100 ohms and a power rating of 225W.

  • Resistance: 100 Ohms
  • Power (Watts): 225W
  • Tolerance: ±10%
  • Temperature Coefficient: ±30ppm/°C
  • Features: Silicone Coated
  • Style: Radial, Tubular
  • Packaging: Bulk
  • Lead Style: Solder Lugs
  • Supply and Demand Status: Balanced
  • Product Status: Obsolete (EOL)
  • Temperature Range: -55°C to 350°C
