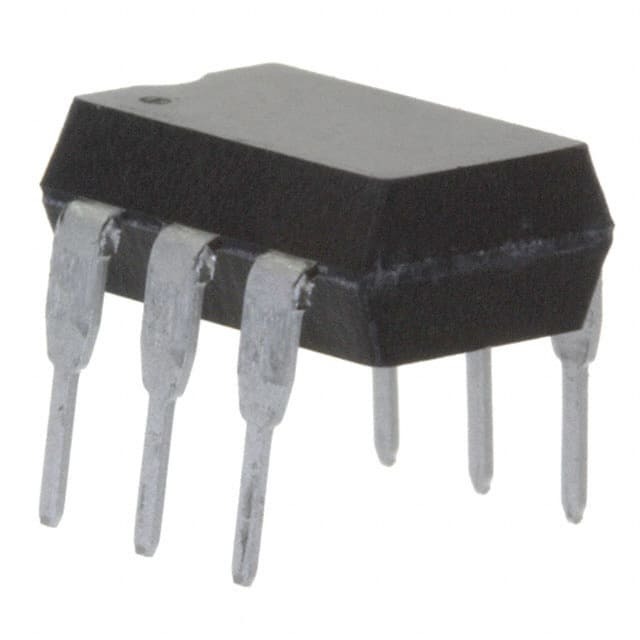

H11B3
Same model may have multiple batches, images only for reference.

H11B3

Part No H11B3
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV DARL W/BASE 6DIP
Datasheet
H11B3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Features Optoisolator Darlington with Base Output 5300Vrms 1 Channel 6-DIP
Manufacturer Vishay
Package Tube
Part Status Obsolete
Operating Temperature Range -55°C ~ 100°C
Mounting Through Hole
Package 6-DIP (0.300", 7.62mm)
Case / Package 6-DIP
Family Name H11
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Other Part Number H11B3GI, H11B3GI-ND, H11B3VS
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873132-H11B3
Ultra Librarian 3D Model Ultra Librarian H11B3 CAD Model

Description

The Vishay H11B3 is an optoisolator Darlington with base output that is designed for use in a variety of electronic applications.

  • Voltage - Isolation: 5300Vrms
  • Operating Temperature: -55°C ~ 100°C
  • Supply and Demand Status: Limited
  • Part Status: Obsolete
