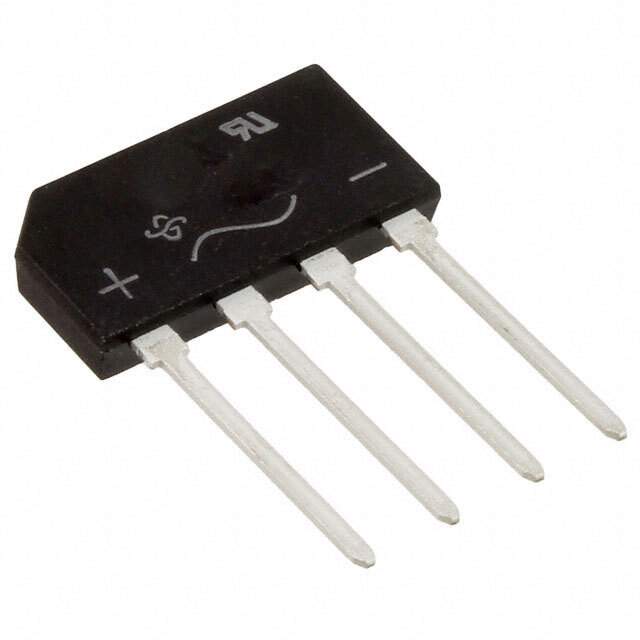

GBL02-E3/45 Real Image
Same model may have multiple batches, images only for reference.

GBL02-E3/45

Part No GBL02-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 200V 3A GBL / Bridge Rectifier Single Phase Standard 200 V Through Hole GBL
Datasheet
GBL02-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 200 V
Current - Average Rectified (Io) 3 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 4 A
Current - Reverse Leakage @ Vr 5 µA @ 200 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package 4-SIP, GBL
Supplier Device Package GBL
Base Product Number GBL02
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number GBL02-E3/45-ND,GBL02-E3/45GI
Standard Package 20
Win Source Part Number 1325781-GBL02-E3/45
Ultra Librarian 3D Model Ultra Librarian GBL02-E3/45 CAD Model

Description

The Vishay General Semiconductor - Diodes Division GBL02-E3/45 is a single-phase diode with a peak reverse voltage of 200V and an average rectified current of 3A.

  • Peak Reverse Voltage: 200V
  • Average Rectified Current: 3A
  • Package: 4-SIP, GBL
  • Operating Temperature: -55°C to 150°C
  • Application: diodes - bridge rectifiers
  • Voltage Forward: 1.1V @ 4A
  • Current Reverse Leakage: 5μA @ 200V
