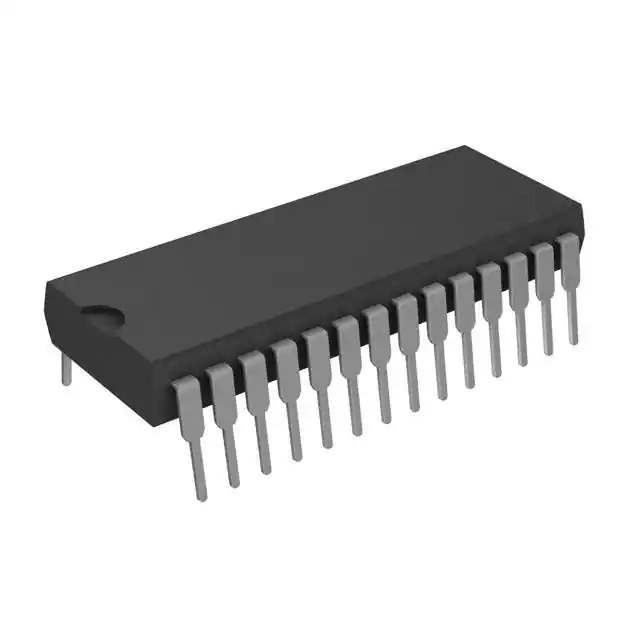

DG535DJ Real Image
Same model may have multiple batches, images only for reference.

DG535DJ

Part No DG535DJ
Manufacturer Vishay
Catalog Interface - Analog Switches - Special Purpose
Description IC AMP/VIDEO/MUX LP 2CH 28DIP
Datasheet
DG535DJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches - Special Purpose
Mfr Vishay
Package Tube
Product Status Obsolete
Applications Video
Number of Channels 1
On-State Resistance (Max) 90Ohm
Voltage - Supply, Single (V+) 10V ~ 16.5V
-3db Bandwidth 500MHz
Features T-Switch Configuration
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 28-DIP (0.600", 15.24mm)
Supplier Device Package 28-PDIP
Base Product Number DG535
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 584945-DG535DJ
Ultra Librarian 3D Model Ultra Librarian DG535DJ CAD Model

Description

The DG535DJ is a special-purpose analog switch designed for video applications.

  • Product: DG535DJ
  • Application: Video
  • Configuration: T-switch
  • On-State Resistance: 90Ohm
  • Supply Voltage Range: 10V to 16.5V
  • -3db Bandwidth: 500MHz
  • Temperature Range: -40°C to 85°C
  • Package Type: 28-DIP
  • Mounting Type: Through-hole
  • Manufacturer: Vishay
  • Status: Obsolete
