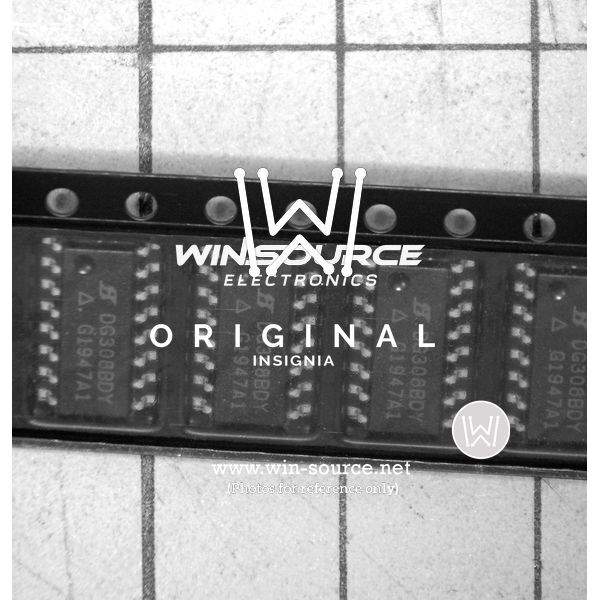

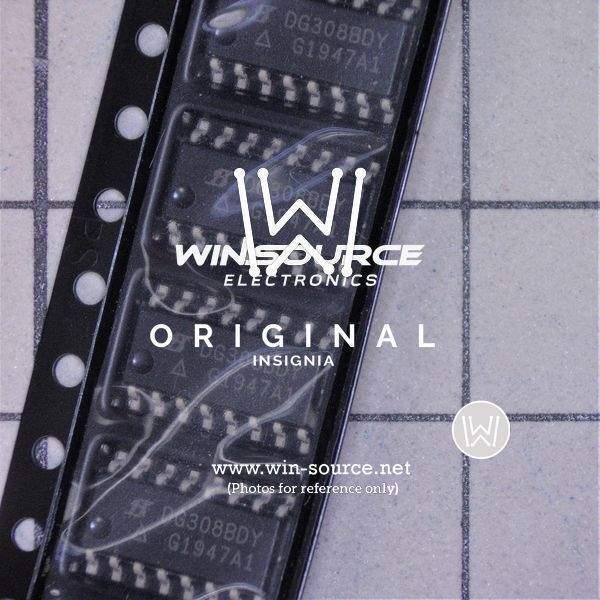

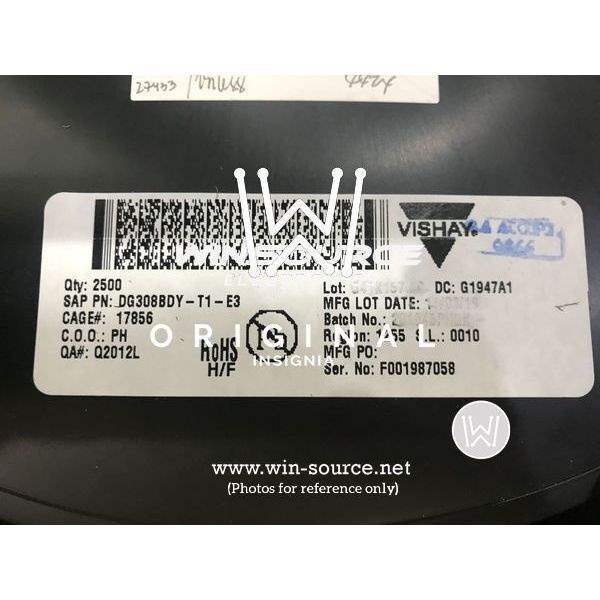

DG308BDY-T1-E3 Real Image DG308BDY-T1-E3 label picture DG308BDY-T1-E3 real image DG308BDY-T1-E3 real image3267
Same model may have multiple batches, images only for reference.
DG308BDY-T1-E3 Real Image DG308BDY-T1-E3 label picture DG308BDY-T1-E3 real image DG308BDY-T1-E3 real image3267
DG308BDY-T1-E3 Real Image DG308BDY-T1-E3 label picture DG308BDY-T1-E3 real image DG308BDY-T1-E3 real image3267
Same model may have multiple batches, images only for reference.

DG308BDY-T1-E3

Part No DG308BDY-T1-E3
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description Analog Switch Quad SPST 16-Pin SOIC N T/R / IC SWITCH QUAD CMOS 16SOIC
Datasheet
DG308BDY-T1-E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Vishay
Packaging Reel - TR
Status Active
Switch Circuit SPST - NO
Number of Circuits 4
Max On Resistance 85 Ohm
Channel-to-Channel Matching (ΔRon) 1.7 Ohm
Single Supply Voltage (V+) 4 V to 44 V
Dual Supply Voltage(V±) ±4 V to 22 V
Max Switch Time (Ton,Toff) 200ns, 150ns
Charge Injection 1pC
Channel Capacitance(CS off, CD off) 5pF, 5pF
Max Leakage Current (IS off) 500pA
Crosstalk -95dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-SOIC
Win Source Part Number 107533-DG308BDY-T1-E3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DG308B
Introduction Date June 28, 2007
ECCN EAR99
Country of Origin Philippines, Taiwan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian DG308BDY-T1-E3 CAD Model

Description

DG308BDY-T1-E3 Description

The DG308BDY-T1-E3 is a precision analog switch known for its outstanding linearity and low power dissipation. It is a perfect choice for applications requiring low-noise signal switching and high linearity.

  • Applications/Projects:
    • Medical Equipment
    • Consumer Electronics
    • Automotive Systems
  • Features and Benefits:
    • Excellent Linearity: Ensures uniform response across its operating range.
    • Low Noise Operation: Ideal for sensitive signal processing tasks.
    • Energy Efficiency: Reduces overall system power requirements.

Ideal for engineers seeking precision and reliability, the DG308BDY-T1-E3 excels in various demanding applications.
