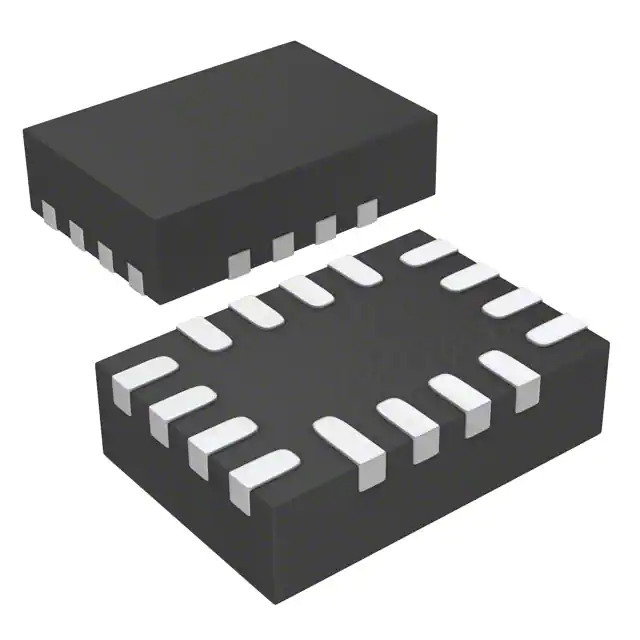

DG2525DN-T1-GE4 Vishay
Same model may have multiple batches, images only for reference.

DG2525DN-T1-GE4

Part No DG2525DN-T1-GE4
Manufacturer Vishay
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SW DPDTX2 500MOHM 16MINIQFN
Datasheet
DG2525DN-T1-GE4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Vishay Siliconix
Series -
Package Tape & Reel
Product Status Active
Switch Circuit DPDT
Number of Circuits 2
On-State Resistance (Max) 500mOhm
Channel-to-Channel Matching (ΔRon) 50mOhm
Voltage - Supply, Single (V+) 1.8V ~ 5.5V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 60µs, 1µs
-3db Bandwidth 310MHz
Charge Injection -19pC
Channel Capacitance (CS(off), CD(off)) -
Current - Leakage (IS(off)) (Max) 1nA
Crosstalk -61dB @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-UFQFN
Supplier Device Package 16-miniQFN (1.8x2.6)
Base Product Number DG2525
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1370836-DG2525DN-T1-GE4
Ultra Librarian 3D Model Ultra Librarian DG2525DN-T1-GE4 CAD Model

Description

The Vishay Siliconix DG2525DN-T1-GE4 is a 2-channel analog switch with a DPDT configuration.

  • On-State Resistance: 500mOhm
  • Channel-to-Channel Matching: 50mOhm
  • Supply Voltage: 1.8V to 5.5V
  • Turn-On Time: 60µs
  • Turn-Off Time: 1µs
  • -3db Bandwidth: 310MHz
  • Charge Injection: -19pC
  • Mounting Type: Surface Mountable
  • Package: 16-UFQFN (16-miniQFN)
  • REACH Compliance: Unaffected by REACH regulations
  • HTSUS Code: 8542.39.0001
  • ECCN: EAR99
  • Manufacturer: Vishay Siliconix
  • Application: Interface Applications
