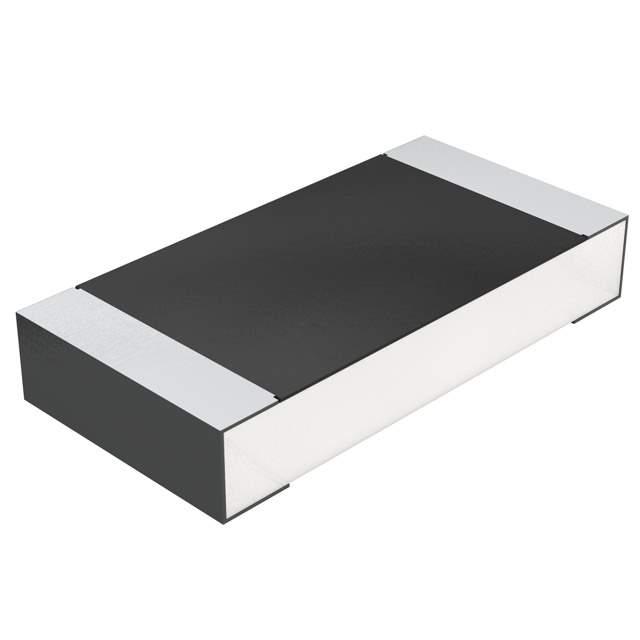

Same model may have multiple batches, images only for reference.

CRCW12063K01FKEA

Name: CRCW12063K01FKEA
Brand: Vishay
SKU: 1327147
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CRCW12063K01FKEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 3.01K OHM 1% 1/4W 1206 / 3.01 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet	CRCW12063K01FKEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	3.01 kOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Base Product Number	CRCW1206
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	D25/CRCW1206 100 3K01 1% ET1 E3,541-3.01KFCT,541-3.01KFTR,541-3.01KFDKR
Standard Package	5,000
Win Source Part Number	1327147-CRCW12063K01FKEA
Ultra Librarian 3D Model	Ultra Librarian CRCW12063K01FKEA CAD Model

Description

The CRCW12063K01FKEA is a chip resistor with a surface mount manufactured by Vishay Dale.

Packaging: Reel - TR
Standard Package: 5,000
Tolerance: ±1%
Temperature Coefficient: ±100ppm/℃
Power Rating: 0.25W or 1/4W
Resistance: 3.01 kOhms
AEC-Q200 Rated: Yes
Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height: 0.024" (0.60mm)
Operating Temperature: -55℃ to 155℃
