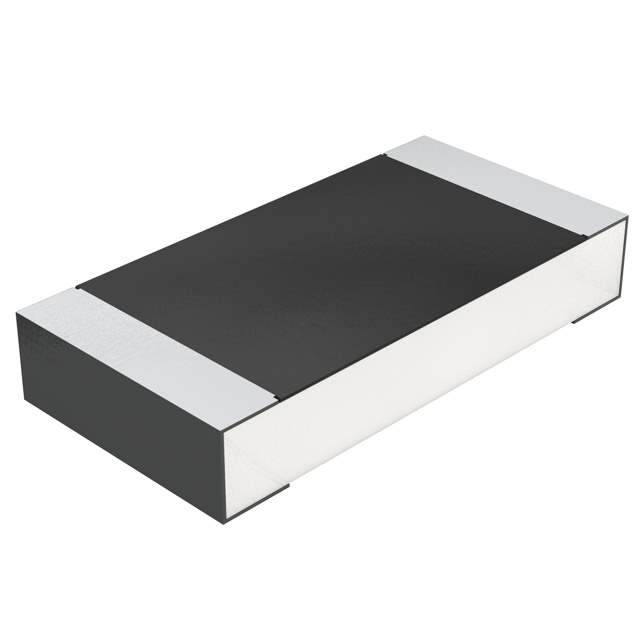

Same model may have multiple batches, images only for reference.

CRCW120630K0FKEA

Name: CRCW120630K0FKEA
Brand: Vishay
SKU: 1327314
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CRCW120630K0FKEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES SMD 30K OHM 1% 1/4W 1206 / 30 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet	CRCW120630K0FKEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	30 kOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Case / Package	1206 (3216 Metric)
Supplier Device Package	1206
Ratings	AEC-Q200
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Base Product Number	CRCW1206
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	D25/CRCW1206 100 30K 1% ET1 E3,541-30.0KFCT,541-30.0KFTR,541-30.0KFDKR
Standard Package	5,000
Win Source Part Number	1327314-CRCW120630K0FKEA
Ultra Librarian 3D Model	Ultra Librarian CRCW120630K0FKEA CAD Model

Description

The Vishay Dale CRCW120630K0FKEA is a 1206 thick film chip resistor designed for automotive applications.

Resistance: 30 kOhms
Tolerance: ±1%
Temperature Coefficient: ±100ppm/°C
Power: 0.25W
Temperature Range: -55°C to 155°C
Package: reel - TR
Terminations: 2
Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
Seated Height: 0.024" (0.60mm)
AEC-Q200: Yes
ROHS3 Compliant: Yes
