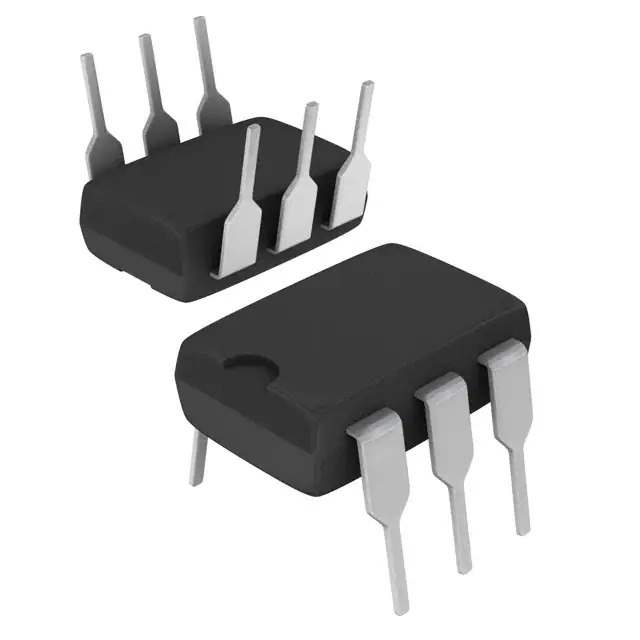

CNY17F-3X001 Real Image
Same model may have multiple batches, images only for reference.

CNY17F-3X001

Part No CNY17F-3X001
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV TRANSISTOR 6-DIP
Datasheet
CNY17F-3X001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Vishay
Package Tube
Product Status Active
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 100% @ 10mA
Current Transfer Ratio (Max) 200% @ 10mA
Turn On / Turn Off Time (Typ) 3µs, 2.3µs
Rise / Fall Time (Typ) 2µs, 2µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number CNY17
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 579967-CNY17F-3X001
Ultra Librarian 3D Model Ultra Librarian CNY17F-3X001 CAD Model

Description

The CNY17F-3X001 is a photovoltaic output optoisolator with a transistor output.

  • Type: Photovoltaic Output Optoisolator with Transistor Output
  • Applications: DC Input
  • Maximum Forward Current: 60mA
  • Forward Voltage Drop: 1.39V
  • Rise and Fall Time: 2μs
  • Output Current per Channel: 50mA
  • Channels: Single
  • High Voltage Isolation: 5000Vrms
  • Maximum Output Voltage: 70V
  • Turn On/Off Time: 3μs / 2.3μs
  • Mounting Type: Through Hole
  • Package: 6-DIP
  • Operating Temperature: -55°C to 110°C
  • Status: Active
