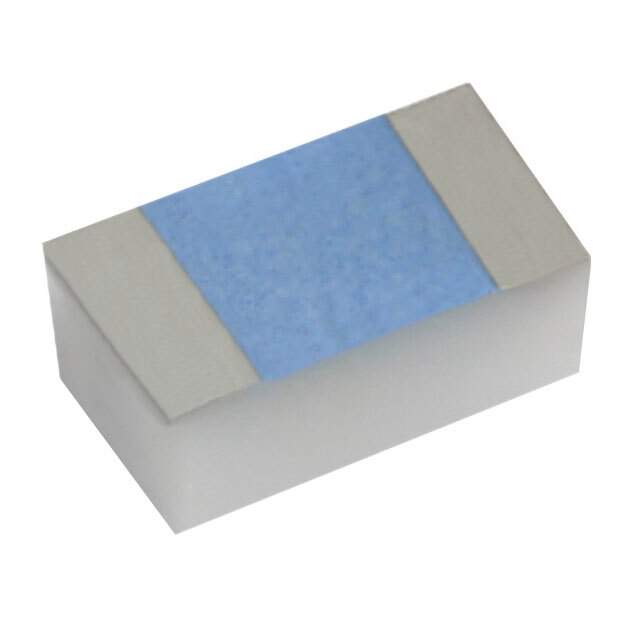

Same model may have multiple batches, images only for reference.

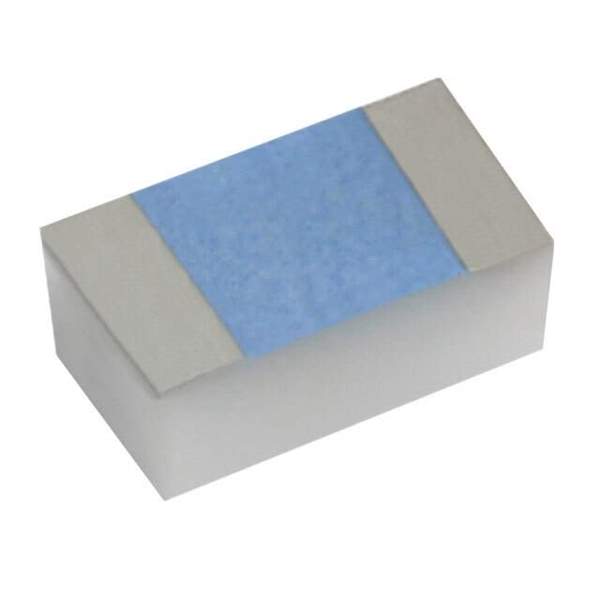

CH0402-100RGFTA Real Image
Same model may have multiple batches, images only for reference.

CH0402-100RGFTA

Part No CH0402-100RGFTA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description CH 0402 100U 2% F TR E2 / 100 Ohms ±2% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) RF, High Frequency Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Sfernice
Series CH
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±2%
Power (Watts) 0.05W, 1/20W
Composition Thin Film
Features RF, High Frequency
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max) 0.025" (0.63mm)
Number of Terminations 2
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351851-CH0402-100RGFTA
Ultra Librarian 3D Model Ultra Librarian CH0402-100RGFTA CAD Model

Description

The Vishay Sfernice 1351851-CH0402-100RGFTA is a thin film chip resistor that belongs to the CH series.

  • Series: CH
  • Mounting Type: Surface Mount
  • Application: RF and High Frequency
  • Package: Tape and Reel
  • Dimension: 0.039” L x 0.024” W (1.00mm x 0.60mm)
  • Seated Height: 0.025” (0.63mm)
  • Tolerance: ±2%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.05W or 1/20W
  • Terminations: 2
  • Resistance: 100 Ohms
  • Package/Case: 0402 (1005 Metric)
  • Temperature Range: -55°C to 155°C
