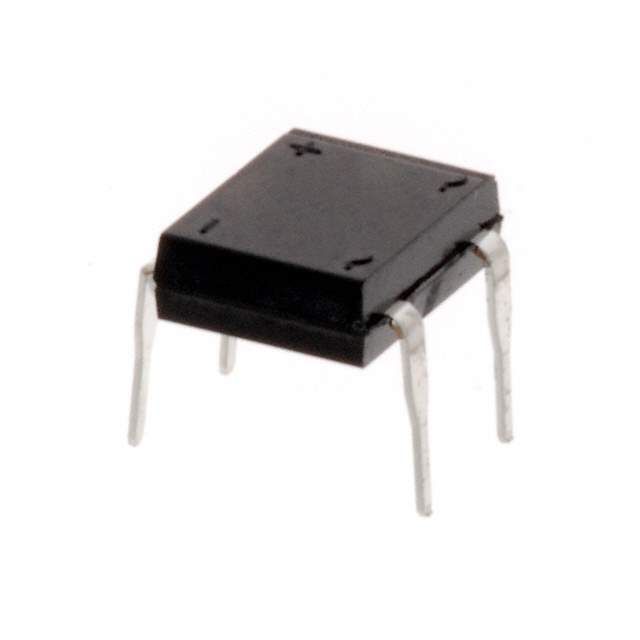

B250C800DM-E3/45 Real Image
Same model may have multiple batches, images only for reference.

B250C800DM-E3/45

Part No B250C800DM-E3/45
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 400V 900MA DFM / Bridge Rectifier Single Phase Standard 400 V Through Hole DFM
Datasheet
B250C800DM-E3/45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 900 mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 900 mA
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case 4-EDIP (0.300", 7.62mm)
Supplier Device Package DFM
Base Product Number B250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names B250C800DME345,B250C800DM-E3/45-ND,B250C800DM-E3/45GI
Standard Package 50
Win Source Part Number 969077-B250C800DM-E3/45
Ultra Librarian 3D Model Ultra Librarian B250C800DM-E3/45 CAD Model

Description

The Vishay General Semiconductor - Diodes Division B250C800DM-E3/45 is a standard package electronic component that comes in a tube package and has a mounting type of through-hole.

  • Diode Type: Single-phase
  • Current Average Rectified (Io): 900 mA
  • Voltage Forward (Vf) (Max) @ If: 1 V @ 900 mA
  • Voltage Peak Reverse (Max): 400 V
  • RoHS Compliant: RoHS non-compliant
  • Manufacturer: Vishay General Semiconductor - Diodes Division
