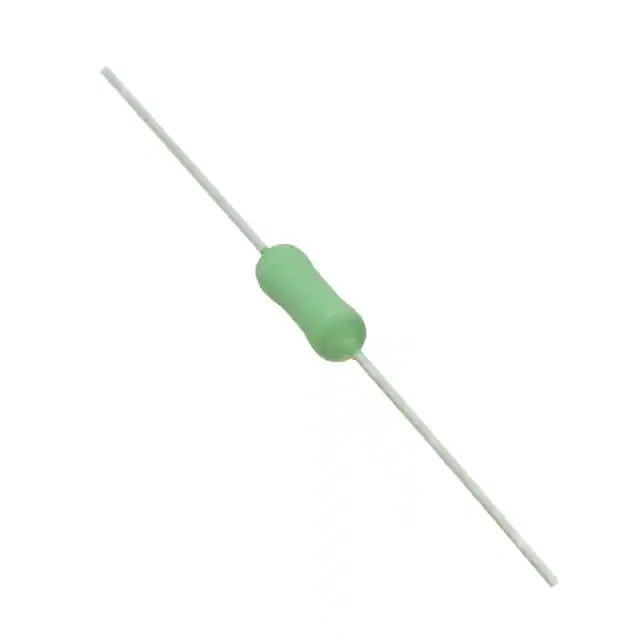

Same model may have multiple batches, images only for reference.
AC03000002209JACCS Vishay
Same model may have multiple batches, images only for reference.

AC03000002209JACCS

Part No AC03000002209JACCS
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 22 OHM 3W 5% AXIAL
Datasheet
AC03000002209JACCS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Beyschlag/Draloric/BC Components
Series AC03
Product Status Active
Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Wirewound
Features Flame Retardant Coating, Fusible, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -40°C ~ 200°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.217" Dia x 0.512" L (5.50mm x 13.00mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1374764-AC03000002209JACCS
Ultra Librarian 3D Model Ultra Librarian AC03000002209JACCS CAD Model

Description

The 1374764-AC03000002209JACCS is an axial through-hole resistor from Vishay Beyschlag/Draloric/BC Components.

  • Series: AC03
  • Application: resistors
  • Resistance: 22 Ohms
  • Power Rating: 3W
  • Size: 0.217" Dia x 0.512" L (5.50mm x 13.00mm)
  • Package: Axial
  • REACH: Unaffected
  • Operating Temperature: -40°C to 200°C
  • Features: Flame Retardant Coating, Fusible, Pulse Withstanding
