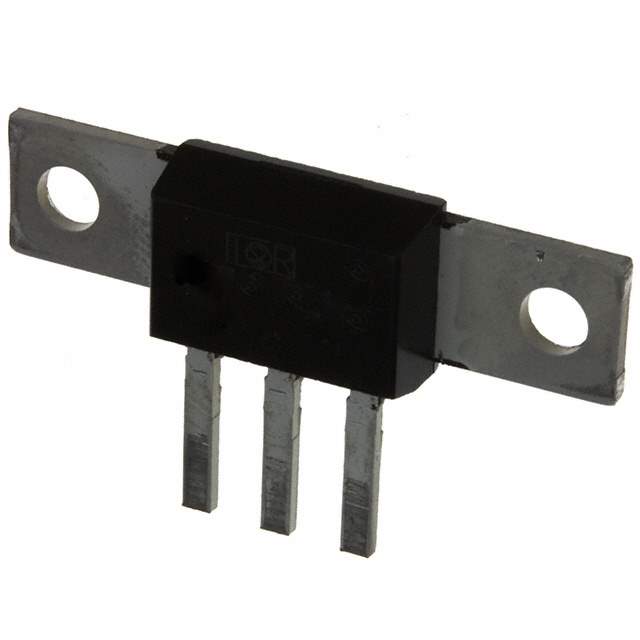

80CNQ045A Real Image
Same model may have multiple batches, images only for reference.

80CNQ045A

Part No 80CNQ045A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER New GenIII D-61 Package | DIODE ARRAY SCHOTTKY 45V D618
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 520mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 45V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package D-61-8
Supplier Device Package D-61-8
Family Part Number 80CNQ045
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Win Source Part Number 1133831-80CNQ045A
Manufacturer Homepage www.irf.com
Family Name 80CNQ045A
ECCN EAR99
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 80CNQ045A CAD Model

Description

The Vishay Semiconductor Diodes Division 80CNQ045A is a fast recovery Schottky diode with a current rating of 40A and a voltage rating of 45V.

  • Current Rating: 40A
  • Voltage Rating: 45V
  • Diode Configuration: 1 Pair Common Cathode
  • Mounting: Chassis
  • Package: D-61-8
  • Operating Temperature Range: -55°C to 150°C
  • Status: Obsolete
  • Supply and Demand Status: limited supply and demand
  • Popularity Rating: high
  • Estimated Obsolete Date: 2024
  • Forward Voltage @ Maximum Current: 520mV
  • Reverse Leakage Current @ Maximum Voltage: 5mA
