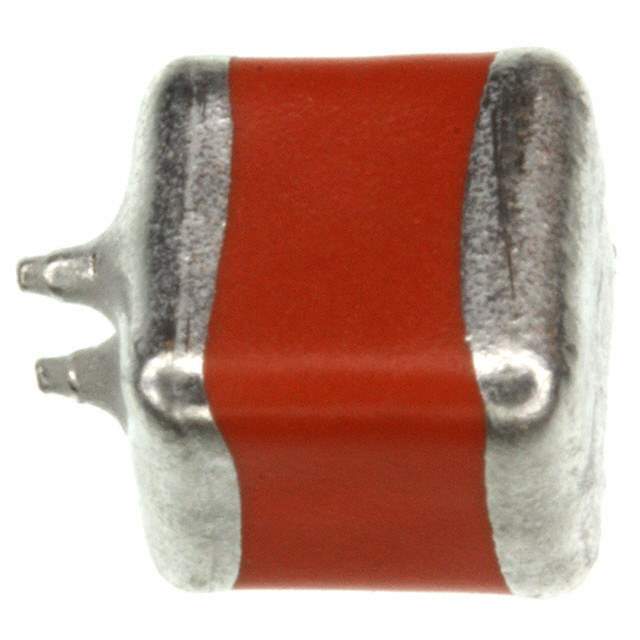

Same model may have multiple batches, images only for reference.

597D226X9063F2T

Name: 597D226X9063F2T
Brand: Vishay
SKU: 1020080
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	597D226X9063F2T
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 22UF 10% 63V 2924 / 22 µF Conformal Coated Tantalum Capacitors 63 V 2924 (7361 Metric) 250mOhm
Datasheet	597D226X9063F2T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum Capacitors
Mfr	Vishay Sprague
Series	TANTAMOUNT®, 597D
Package	Tape & Reel
Capacitance	22 µF
Tolerance	±10%
Voltage - Rated	63 V
Type	Conformal Coated
ESR (Equivalent Series Resistance)	250mOhm
Temperature Range - Operating	-55°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	2924 (7361 Metric)
Dimension	0.299" L x 0.236" W (7.60mm x 6.00mm)
Height - Seated (Max)	0.203" (5.16mm)
Manufacturer Size Code	F
Features	General Purpose
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8532.21.0050
Other Names	718-1407-2,718-1407-1,718-1407-6
Standard Package	250
Win Source Part Number	1020080-597D226X9063F2T
Ultra Librarian 3D Model	Ultra Librarian 597D226X9063F2T CAD Model

Description

The Vishay Sprague TANTAMOUNT 597D series conformal coated tantalum capacitor is a general-purpose component ideal for use in electronic circuitry.

Capacitance: 22 µF
Voltage Rating: 63 V
ESR (Equivalent Series Resistance): 250mOhm
Package/Case: 2924 (7361 Metric)
Temperature Range: -55°C ~ 125°C
Mounting: SMD (SMT) mounted
Packaging: tape and reel
Dimensions: 0.299" L x 0.236" W (7.60mm x 6.00mm)
Manufacturer Size Code: F
