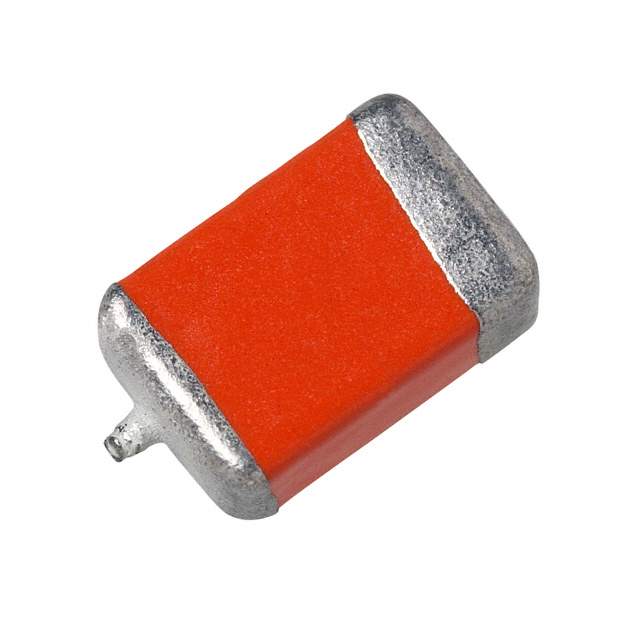

594D127X0020R2T Real Image
Same model may have multiple batches, images only for reference.

594D127X0020R2T

Part No 594D127X0020R2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 120UF 20V 20% 2824
Datasheet
594D127X0020R2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 594D
Packaging Reel package
Capacitance 120μF
Tolerance ±20%
Voltage Rating DC 20V
Type Conformal Coated
ESR (Equivalent Series Resistance) 80 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2824 (7260 Metric)
Dimension 0.283" L x 0.236" W (7.20mm x 6.00mm)
Height - Seated (Maximum) 0.148" (3.75mm)
Manufacturer Size Code R
Features General
Win Source Part Number 764119-594D127X0020R2T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 594D127X0020R2T CAD Model

Description

The Vishay Sprague TANTAMOUNT 594D series is a conformal coated type capacitor with a capacitance of 120μF and a tolerance of ±20%.

  • Capacitance: 120μF
  • Tolerance: ±20%
  • ESR: 80 mOhm
  • Voltage Rating DC: 20V
  • Package: 2824 (7260 Metric)
  • Mounting: SMD
  • Dimensions: 0.283" L x 0.236" W (7.20mm x 6.00mm)
  • Height: 0.148" (3.75mm)
  • Operating Temperature: -55°C ~ 125°C
  • Applications: General Purpose
  • Supply and Demand: Limited
