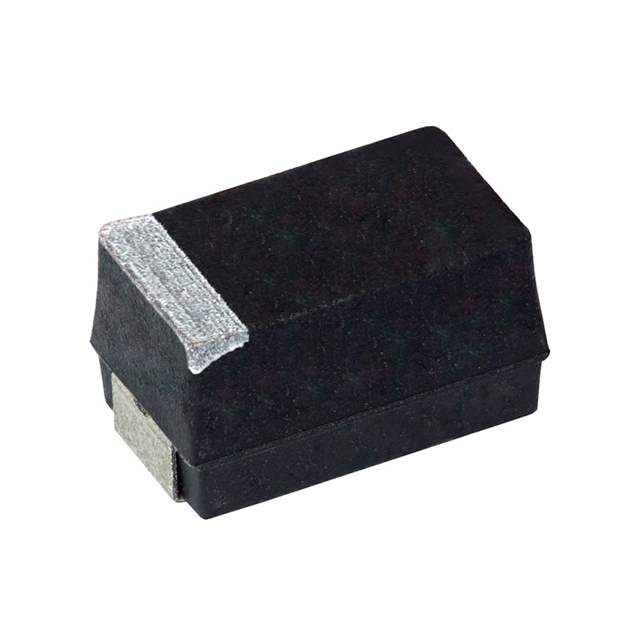

The Vishay 593D226X9016C2TE3 is a solid tantalum surface-mount capacitor designed for industrial and commercial applications requiring high reliability and stable performance. Part of the 593D series, it's known for its robust construction and suitability for automated assembly processes.

Applications

• Power supply decoupling
• DC-DC converters
• General filtering applications
• Industrial control systems
• Automotive electronics

Features

• Solid tantalum capacitor: Offers stable electrical characteristics and long lifespan.
• Surface mount technology (SMT): Facilitates efficient automated assembly.
• Molded case: Provides protection against environmental factors and physical damage.
• Low equivalent series resistance (ESR): Improves filtering and reduces power dissipation.
• High ripple current capability: Allows for use in applications with significant AC ripple.

Benefits

• High reliability: Tantalum construction ensures long-term stability.
• Efficient assembly: Surface mount design speeds up production and reduces costs.
• Robust performance: Molded case protects against harsh environmental conditions.
• Improved filtering: Low ESR enhances filtering effectiveness.
• Versatile applications: Suitable for a wide range of industrial and commercial uses.

Additional Details

The 593D226X9016C2TE3 has a capacitance of 22 µF, a voltage rating of 16 VDC, and a capacitance tolerance of ±10%. It comes in a C case size. It operates effectively within a temperature range of -55°C to +125°C. This component is commonly used in circuits where stable capacitance and reliable performance are essential. Further technical details can be found on the Vishay datasheet for the 593D series.
