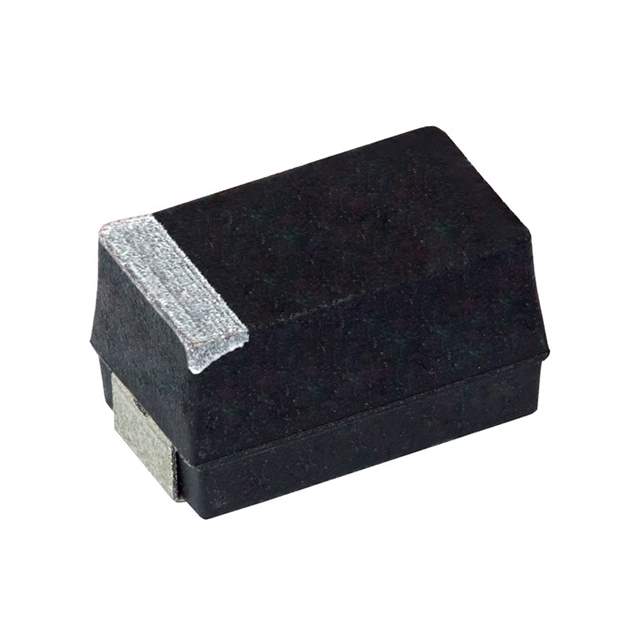

593D156X0035D2TE3 Real Image
Same model may have multiple batches, images only for reference.

593D156X0035D2TE3

Part No 593D156X0035D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT®, Molded Case, Low ESR | CAP TANT 15UF 20% 35V 2917
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Packaging Tape and Reel
Capacitance 15μF
Tolerance ±20%
Voltage - Rated 35V
Type Molded
ESR (Equivalent Series Resistance) 300mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1129346-593D156X0035D2TE3
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 593D156X0035D2TE3 CAD Model

Description

The Vishay Sprague 593D156X0035D2TE3 is a molded capacitor that is designed for general-purpose applications.

  • Capacitance: 15μF
  • Tolerance: ±20%
  • Voltage Rating: 35V
  • ESR: 300mOhm
  • Manufacturer Size Code: D
  • Packaging: Tape and Reel
  • Temperature Range: -55°C to 125°C
  • Seated Height: 0.122 inches (3.10mm)
  • Supply and Demand: Balanced
  • Applications: Widely used in various applications
