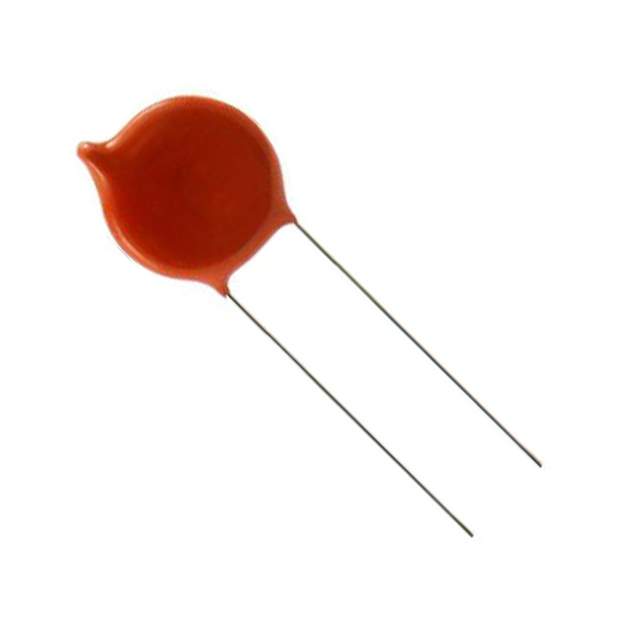

564R60GAD22 Real Image
Same model may have multiple batches, images only for reference.

564R60GAD22

Part No 564R60GAD22
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 2200PF 6KV Z5U RADIAL / 2200 pF ±20% 6000V (6kV) Ceramic Capacitor Z5U Radial, Disc
Datasheet
564R60GAD22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Cera-Mite
Series Cera-Mite 564R
Package Bulk
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 6000V (6kV)
Temperature Coefficient Z5U
Temperature Range - Operating -25°C ~ 105°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.531" Dia (13.50mm)
Height - Seated (Max) 0.720" (18.30mm)
Lead Spacing 0.374" (9.50mm)
Lead Style Straight
Standard Package 125
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1339276-564R60GAD22
Ultra Librarian 3D Model Ultra Librarian 564R60GAD22 CAD Model

Description

The Cera-Mite 564R ceramic capacitor from Vishay Cera-Mite is a high-quality component designed for general purpose applications.

  • Capacitance: 2200 pF
  • Voltage Rating: 6 kV
  • Package: Radial, disc
  • Diameter: 0.531 inches
  • Height (Seated): 0.720 inches
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
  • Temperature Coefficient: Z5U
  • Mounting Type: Through-hole
  • Lead Spacing: 0.374 inches
  • Package: Bulk
  • Standard Package: 125
