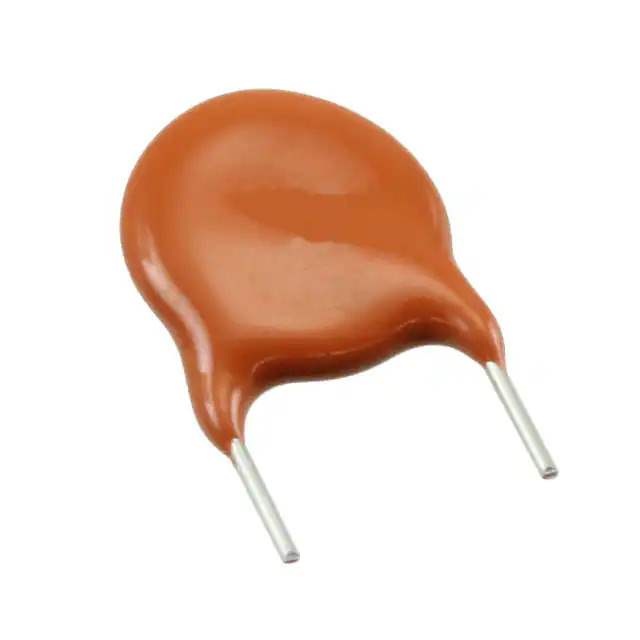

562R5GAD47 Real Image
Same model may have multiple batches, images only for reference.

562R5GAD47

Part No 562R5GAD47
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 4700PF 1KV Z5U RADIAL
Datasheet
562R5GAD47 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay
Series Cera-Mite 562R
Package Bulk
Product Status Active
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient Z5U
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.370" Dia (9.40mm)
Height - Seated (Max) 0.495" (12.58mm)
Lead Spacing 0.252" (6.40mm)
Lead Style Straight
Standard Package 250 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 856583-562R5GAD47
Ultra Librarian 3D Model Ultra Librarian 562R5GAD47 CAD Model

Description

The 856583-562R5GAD47 is a ceramic capacitor from the Cera-Mite 562R series and is manufactured by Vishay.

  • Capacitance: 4700pF
  • Tolerance: ±10%
  • Voltage Rating: 1000V (1kV)
  • Temperature Coefficient: Z5U
  • Application: General Purpose
  • Height: 0.495" (12.58mm)
  • Mounting Type: Through Hole
  • Package: Radial, Disc
  • Temperature Range: -55°C to 105°C
