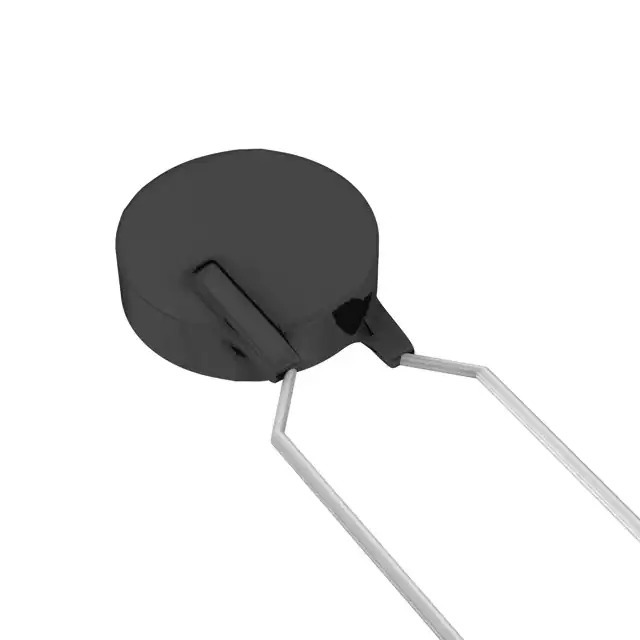

Same model may have multiple batches, images only for reference.
562R5GAD10 Vishay
Same model may have multiple batches, images only for reference.

562R5GAD10

Part No 562R5GAD10
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 1000PF 1KV X7R RADIAL / 1000 pF ±20% 1000V (1kV) Ceramic Capacitor X7R Radial, Disc
Datasheet
562R5GAD10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Cera-Mite
Series Cera-Mite 562R
Package Bulk
Product Status Active
Capacitance 1000 pF
Tolerance ±20%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 105°C
Features -
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.252" Dia (6.40mm)
Height - Seated (Max) 0.157" (4.00mm)
Thickness (Max) -
Lead Spacing 0.252" (6.40mm)
Lead Style Formed Leads
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359977-562R5GAD10
Ultra Librarian 3D Model Ultra Librarian 562R5GAD10 CAD Model

Description

The Vishay Cera-Mite 562R is a ceramic capacitor with a capacitance of 1000 pF and a voltage rating of 1000V. It has a tolerance of ±20% and a temperature coefficient of X7R, allowing it to operate within a wide temperature range of -55°C to 105°C.

  • Capacitance: 1000 pF
  • Voltage Rating: 1000V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C to 105°C
  • Application: General Purpose
  • Diameter: 0.252" (6.40mm)
  • Height: 0.157" (4.00mm)
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Product Status: Active
  • Series: Cera-Mite
  • REACH: Unaffected
  • ECCN: EAR99
