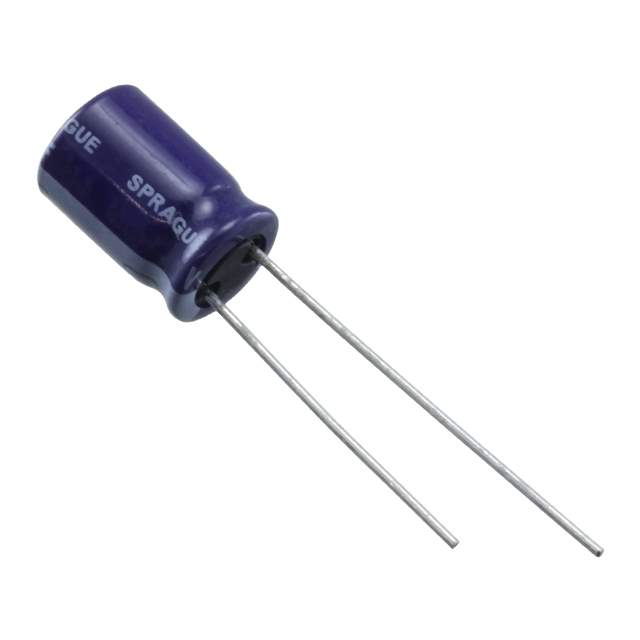

515D688M016FR6AE3 Real Image
Same model may have multiple batches, images only for reference.

515D688M016FR6AE3

Part No 515D688M016FR6AE3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 6800UF 20% 16V RADIAL
Datasheet
515D688M016FR6AE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Bulk
Status Active
Capacitance 6800μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 2.5A @ 120Hz
Ripple Current - High Frequency 2.875A @ 10kHz
Lead Spacing 0.295" (7.50mm)
Height - Seated (Max) 1.398" (35.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 197772-515D688M016FR6AE3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 515D688M016FR6AE3 CAD Model

Description

515D688M016FR6AE3 High-Capacity Capacitor

The 515D688M016FR6AE3 is a high-capacity capacitor designed for efficient energy storage and discharge, suitable for a variety of electronic circuits.

  • Applications/Projects:
    • Power Supply Units
    • Audio Equipment
    • Signal Processing
    • Voltage Regulation
  • Features and Benefits:
    • Large Capacitance Value
    • Low Equivalent Series Resistance (ESR)
    • Long Lifespan
    • Wide Operating Temperature Range
  • Additional Details:
    • Capacitance: 6800uF
    • Voltage Rating: 16V
    • Diameter: 18mm
