Same model may have multiple batches, images only for reference.

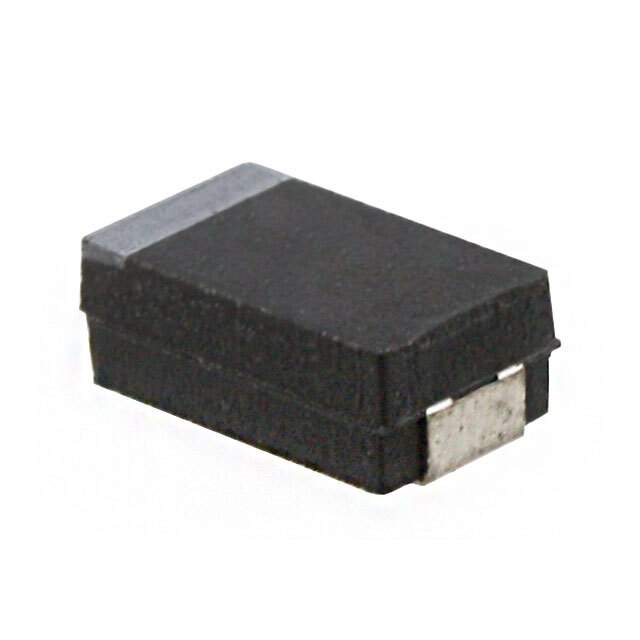

293D226X0016D2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D226X0016D2TE3

Part No 293D226X0016D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 16V 20% 2917
Datasheet
293D226X0016D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 293D
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 16V
Type Molded
ESR (Equivalent Series Resistance) 800 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 762103-293D226X0016D2TE3
Popularity Medium
Supply and Demand Status Limited
Family Name 293D
Introduction Date September 25, 2001
ECCN EAR99
Country of Origin China, Israel
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 293D226X0016D2TE3 CAD Model

Description

The 293D226X0016D2TE3 is an electronic component manufactured by Vishay Sprague.

  • Type: Molded
  • Capacitance: 22μF
  • Voltage Rating DC: 16V
  • Supply and Demand Status: Limited
