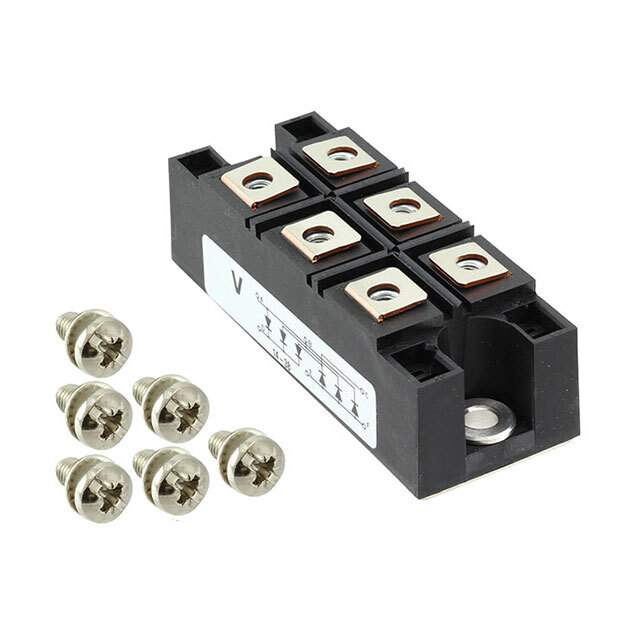

The 160MT120KPBF is a single-phase bridge rectifier from Vishay, designed for converting alternating current (AC) to direct current (DC). It is part of the 160MT series and is known for its high surge current capability and robust construction, making it suitable for demanding applications.

Applications

• Power Supplies: Used in power supplies for various electronic devices and equipment.
• Industrial Automation: Employed in industrial automation systems for rectifying AC power.
• Welding Equipment: Found in welding machines to convert AC to DC for the welding process.
• Motor Drives: Utilized in motor drives to provide the necessary DC power for motor control.
• Battery Charging: Incorporated in battery charging circuits for rectifying AC voltage.

Features

• High Surge Current Capability: Offers a high surge current capability, allowing it to withstand large inrush currents.
• High Isolation Voltage: Provides high isolation voltage between the terminals and the mounting base.
• Low Forward Voltage Drop: Minimizes power loss due to a low forward voltage drop.
• Industry Standard Package: Comes in an industry-standard package for easy mounting and compatibility.
• RoHS Compliant: Compliant with RoHS standards, ensuring environmental friendliness.

Benefits

• Reliable AC-DC Conversion: Ensures reliable conversion of AC power to DC power for various applications.
• Robust Performance: Delivers robust performance under harsh operating conditions.
• Easy Integration: Simplifies integration into existing and new designs with its standard package.
• Long Service Life: Provides a long service life due to its rugged construction and high-quality materials.
• Enhanced System Efficiency: Improves overall system efficiency by minimizing power losses.

Additional Details

The 160MT120KPBF has a maximum repetitive peak reverse voltage of 1200V and a maximum average forward rectified current of 160A. Its operating temperature range is typically from -40°C to +150°C. The package is designed for easy mounting and heatsinking to ensure efficient thermal management. This bridge rectifier is suitable for applications requiring a reliable and high-performance solution for AC-DC conversion.
