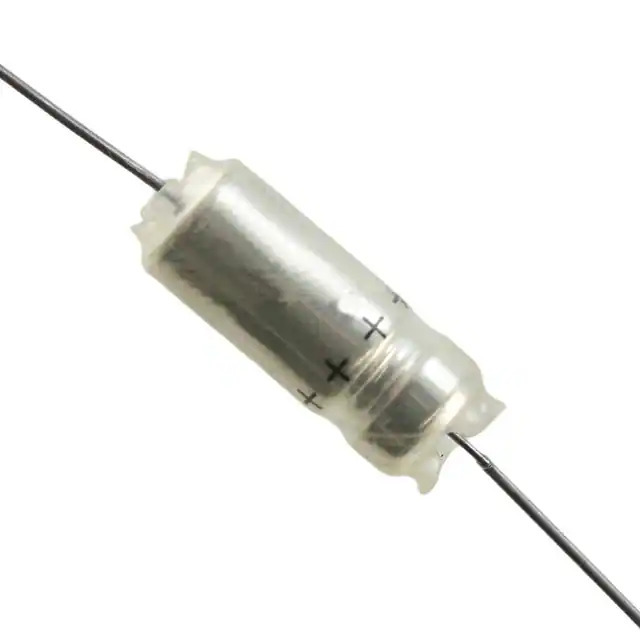

Same model may have multiple batches, images only for reference.
109D826X9075F2 Vishay
Same model may have multiple batches, images only for reference.

109D826X9075F2

Part No 109D826X9075F2
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 82UF 10% 75V AXIAL / 82 µF Hermetically Sealed Tantalum Capacitors 75 V Axial 2.5Ohm
Datasheet
109D826X9075F2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay Sprague
Series TANTALEX®, 109D
Package Tray
Product Status Active
Capacitance 82 µF
Tolerance ±10%
Voltage - Rated 75 V
Type Hermetically Sealed
ESR (Equivalent Series Resistance) 2.5Ohm
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Through Hole
Package / Case Axial
Size / Dimension 0.312" Dia x 0.796" L (7.92mm x 20.22mm)
Height - Seated (Max) -
Lead Spacing -
Manufacturer Size Code F
Features Wet Tantalum
Failure Rate -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0080
Win Source Part Number 1359898-109D826X9075F2
Ultra Librarian 3D Model Ultra Librarian 109D826X9075F2 CAD Model

Description

The TANTALEX® 109D series tantalum capacitor is a high-performance component manufactured by Vishay Sprague. It is a hermetically sealed axial capacitor with a capacitance of 82 µF and a voltage rating of 75V.

  • Capacitance: 82 µF
  • Voltage Rating: 75V
  • Tolerance: ±10%
  • Equivalent Series Resistance (ESR): 2.5Ohm
  • Size: 0.312" Dia x 0.796" L (7.92mm x 20.22mm)
  • Mounting Type: Through Hole
  • Capacitor Type: Wet Tantalum
  • Operating Temperature: -55°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
