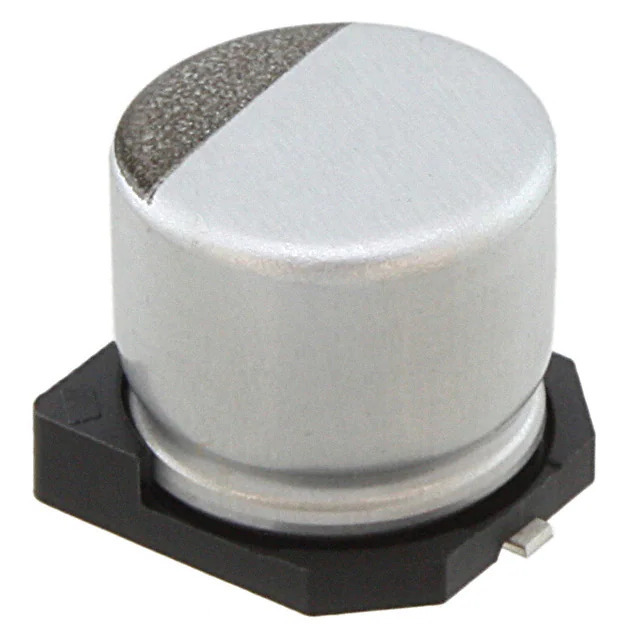

HHXA250ARA560MF61G United Chemi-Con
Same model may have multiple batches, images only for reference.

HHXA250ARA560MF61G

Part No HHXA250ARA560MF61G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM HYB 56UF 20% 25V SMD / 56 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 50mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series HXA
Package Tape & Reel
Product Status Not For New Designs
Type Hybrid
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 50mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 900 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359489-HHXA250ARA560MF61G
Ultra Librarian 3D Model Ultra Librarian HHXA250ARA560MF61G CAD Model

Description

The HXA series aluminum polymer capacitor is a high-performance component designed for automotive applications.

  • Capacitance: 56 μF
  • Voltage Rating: 25 V
  • Size: 0.248" Dia x 0.240" H
  • Manufacturer: United Chemi-Con
  • Lifetime: 4000 hours @ 125°C
  • Ripple Current (High Frequency): 900 mA
  • AEC-Q200: Rated
  • Packaging: Tape and Reel
  • Status: Not Recommended for New Designs, Active
