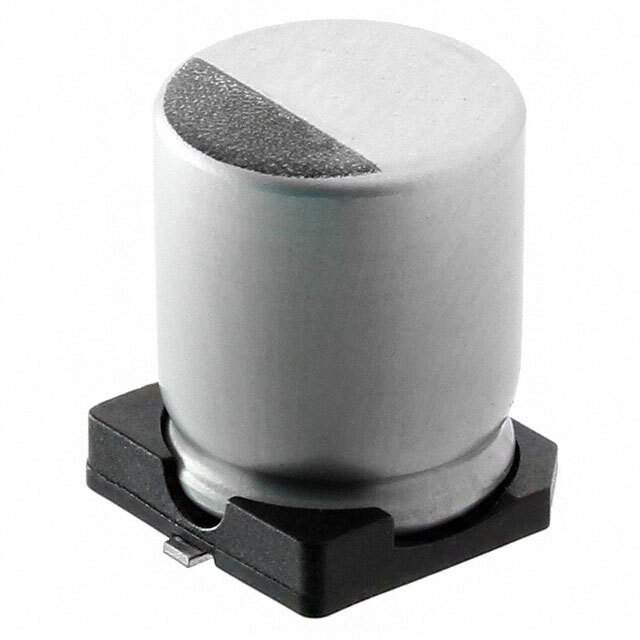

Same model may have multiple batches, images only for reference.

EMZR250ARA471MHA0G

Name: EMZR250ARA471MHA0G
Brand: United Chemi-Con
SKU: 1307273
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EMZR250ARA471MHA0G
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	Alchip™- MZR
Package	Tape & Reel
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	80mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	425 mA @ 120 Hz
Ripple Current @ High Frequency	850 mA @ 100 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Other Names	565-5144-6,565-5144-2,565-5144-1
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1307273-EMZR250ARA471MHA0G
Ultra Librarian 3D Model	Ultra Librarian EMZR250ARA471MHA0G CAD Model

Alternative Products

Description

The Alchip™- MZR series aluminum electrolytic capacitor from United Chemi-Con, with a Win Source Part Number of 1307273-EMZR250ARA471MHA0G, has a capacitance of 470 µF and a voltage rating of 25 V. United Chemi-Con

Capacitance: 470 µF
Voltage Rating: 25 V
Tolerance: ±20%
Application: Automotive
Package: radial, can - SMD
Mounting Type: SMD (SMT)
Height: 0.413" (10.50mm)
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
ESR: 80mOhm @ 100kHz
Lifetime: 2000 Hrs @ 105°C
Ripple Current (Low Frequency): 425 mA @ 120 Hz
Ripple Current (High Frequency): 850 mA @ 100 kHz
MSL Level: 1 (Unlimited)
REACH Status: unaffected
HTSUS: 8532.22.0020
Other Names: 565-5144-6,565-5144-2,565-5144-1
