Same model may have multiple batches, images only for reference.

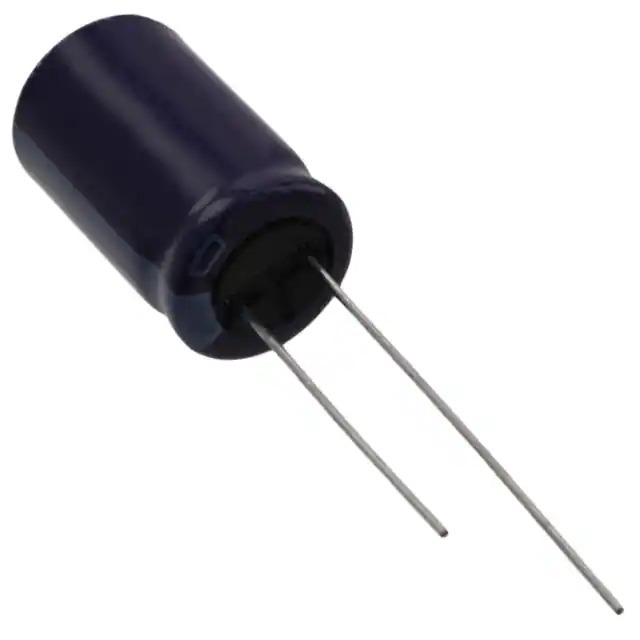

ELXZ630ELL471MK30S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXZ630ELL471MK30S

Part No ELXZ630ELL471MK30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 63V RADIAL / 470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXZ
Package Bulk
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.045 A @ 120 Hz
Ripple Current @ High Frequency 2.09 A @ 100 kHz
Impedance 55 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.240" (31.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357697-ELXZ630ELL471MK30S
Ultra Librarian 3D Model Ultra Librarian ELXZ630ELL471MK30S CAD Model

Description

The United Chemi-Con LXZ series aluminum electrolytic capacitor is a high-quality component designed for automotive applications.

  • Capacitance: 470 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Polarization: Polarized
  • Size: 0.492" Dia (12.50mm)
  • Height: 1.240" (31.50mm)
  • Lifetime: 7000 hours @ 105°C
  • Temperature Range: -55°C to 105°C
  • Ripple Current (Low Frequency): 1.045 A @ 120 Hz
  • Ripple Current (High Frequency): 2.09 A @ 100 kHz
  • Product Status: Active
  • Manufacturer: United Chemi-Con
