Same model may have multiple batches, images only for reference.

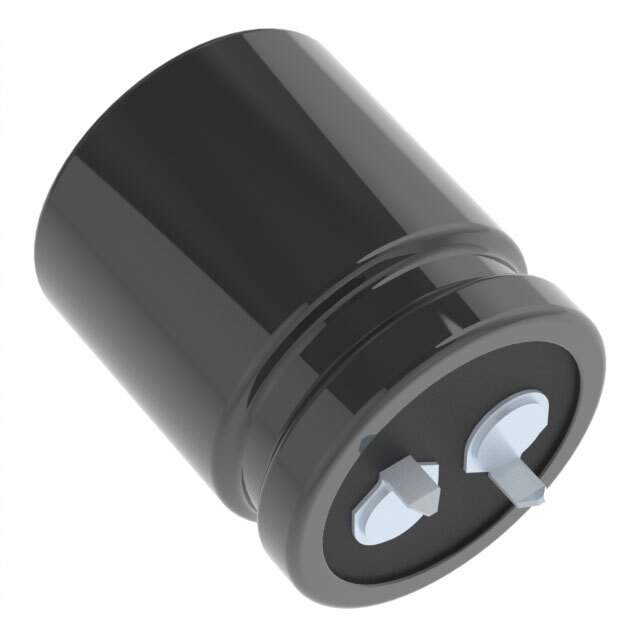

EKMH101VSN102MQ30T Real Image
Same model may have multiple batches, images only for reference.

EKMH101VSN102MQ30T

Part No EKMH101VSN102MQ30T
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 100V SNAP / Cap Aluminum Lytic 1000uF 100V 20% (25.4 X 30mm) Snap-In 10mm 0.249 Ohm 1510mA 2000h 105°C
Datasheet
EKMH101VSN102MQ30T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Series KMH
Packaging Bulk
Capacitance 1000μF
Tolerance ±20%
Voltage Rating DC 100V
ESR (Equivalent Series Resistance) 249 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 1.51A @ 120Hz
Ripple Current - High Frequency 1.812A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.000" Dia (25.40mm)
Height - Seated (Maximum) 1.181" (30.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 777850-EKMH101VSN102MQ30T
Popularity Medium
Supply and Demand Status Limited
Family Name KM
Introduction Date May 06, 2007
ECCN EAR99
Country of Origin China, Japan, United States of America
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian EKMH101VSN102MQ30T CAD Model

Description

The United Chemi-Con KMH101VSN102MQ30T is a capacitor with a capacitance of 1000μF and a voltage rating DC of 100V. It is part of the KMH series and is packaged in bulk with a mounting style of through hole.

  • Capacitance: 1000μF
  • Voltage Rating (DC): 100V
  • Series: KMH
  • Mounting Style: Through hole
  • Packaging: Bulk
  • Supply and Demand Status: Limited
  • ESR: 249 mOhm @ 120Hz
  • Lifetime: 2000 Hrs @ 105°C
  • Ripple Current (Low Frequency): 1.51A @ 120Hz
  • Ripple Current (High Frequency): 1.812A @ 100kHz
  • Height (Seated): 1.181" (30.00mm)
  • Diameter: 1.000" (25.40mm)
