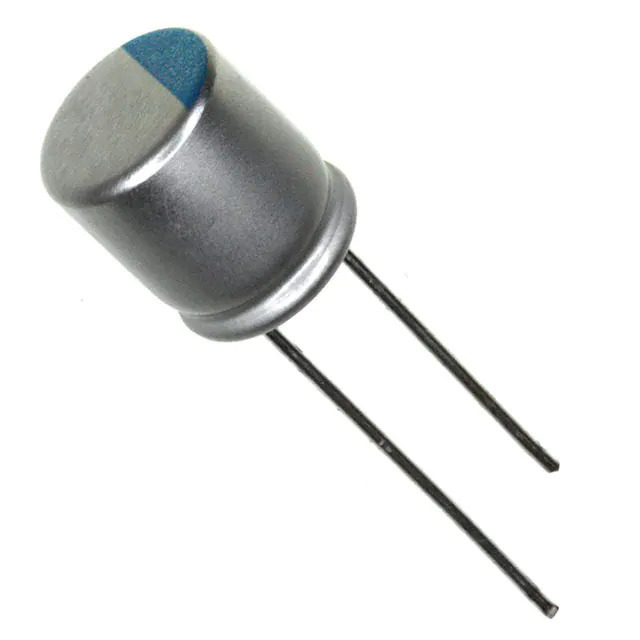

Same model may have multiple batches, images only for reference.

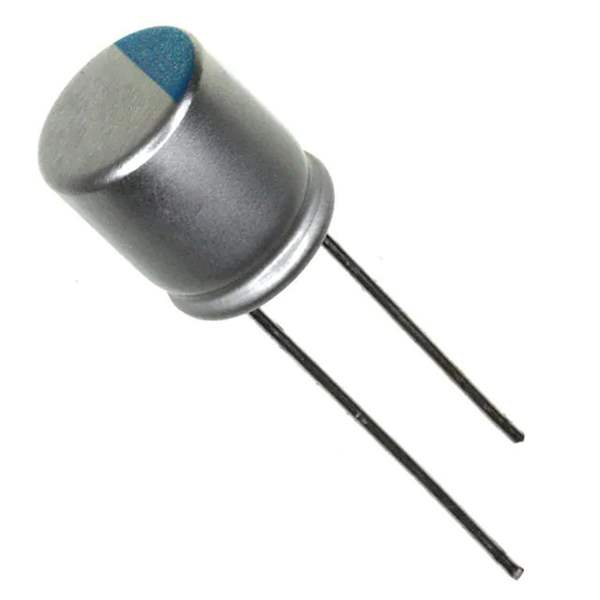

APSG160ELL271MF08J

Name: APSG160ELL271MF08J
Brand: United Chemi-Con
SKU: 1359592
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	APSG160ELL271MF08J
Manufacturer	United Chemi-Con
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 270UF 20% 16V T/H / 270 µF 16 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 20000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	United Chemi-Con
Series	NPCAP™-PSG
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	270 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	10mOhm
Lifetime @ Temp.	20000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	5.08 A @ 100 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.354" (9.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359592-APSG160ELL271MF08J
Ultra Librarian 3D Model	Ultra Librarian APSG160ELL271MF08J CAD Model

Alternative Products

Description

The 1359592-APSG160ELL271MF08J is a polymer capacitor from United Chemi-Con's NPCAP™-PSG series. It is designed for general-purpose applications and has a capacitance of 270 µF with a tolerance of ±20%.

Series: NPCAP™-PSG
Application: General Purpose
Capacitance: 270 µF
Tolerance: ±20%
Voltage Rating: 16 V
ESR: 10 mOhm
Lifetime: 20000 hours @ 105°C
Ripple Current: 5.08 A @ 100 kHz
Lead Spacing: 0.098" (2.50mm)
Size: 0.248" (6.30mm) Diameter
Height (Seated): 0.354" (9.00mm)
Mounting Type: Through Hole
Product Status: Active
Packaging: Bulk
REACH: Unaffected
ECCN: EAR99
