Same model may have multiple batches, images only for reference.

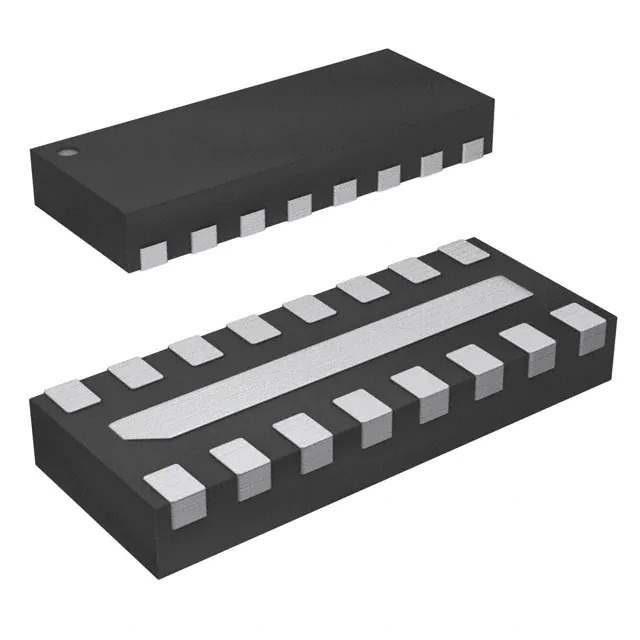

UM8411 Real Image
Same model may have multiple batches, images only for reference.

UM8411

Part No UM8411
Manufacturer Union Semiconductor
Catalog EMI/RFI Filters (LC, RC Networks)
Description 8-Line RC EMI Filter with TVS
Datasheet
UM8411 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Union Semiconductor
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Center / Cutoff Frequency 150MHz (Cutoff)
Attenuation Value -36dB @ 800MHz, -32dB @ 2 ~ 5GHz
Values R = 100Ohm, C = 10pF
ESD Protection Yes
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 5V
Mounting Type Surface Mount
Package / Case 8-UFDFN
Size / Dimension 0.130" L x 0.051" W (3.30mm x 1.30mm)
Height 0.024" (0.60mm)
Standard Package 2 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.39.0001
Win Source Part Number 387715-UM8411
Ultra Librarian 3D Model Ultra Librarian UM8411 CAD Model

Description

The 387715-UM8411 is a low pass EMI/RFI filter designed for data lines in mobile devices. It is part of the Filters - EMI/RFI Filters (LC, RC Networks) category and has a package size of 0.130" L x 0.051" W (3.30mm x 1.30mm).

  • Rated Voltage: 5V
  • Technology: RC (Pi)
  • Channels: 8
  • Attenuation: -36dB @ 800MHz and -32dB @ 2 ~ 5GHz
  • Filter Order: 2nd order
  • Cutoff Frequency: 150MHz
  • ESD Protection: Yes
  • Mounting: Surface Mountable
  • Package: 8-UFDFN
  • Operating Temperature Range: -40°C to 85°C
  • Status: Active
  • Manufacturer: Union Semiconductor
