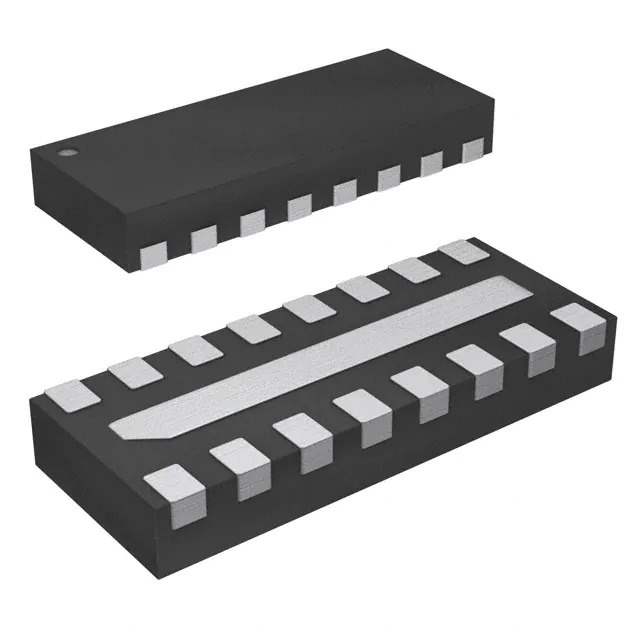

UM8401 Real Image
Same model may have multiple batches, images only for reference.

UM8401

Part No UM8401
Manufacturer Union Semiconductor
Catalog EMI/RFI Filters (LC, RC Networks)
Description 8-Line RC EMI Filter with TVS
Datasheet
UM8401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - EMI/RFI Filters (LC, RC Networks)
Mfr Union Semiconductor
Package Tape & Reel
Product Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Center / Cutoff Frequency 150MHz (Cutoff)
Attenuation Value -31.5dB @ 800MHz, 25dB @ 2 ~ 5GHz
Values R = 100Ohm, C = 10pF
ESD Protection Yes
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 5V
Mounting Type Surface Mount
Package / Case 16-WFDFN Exposed Pad
Size / Dimension 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height 0.031" (0.80mm)
Standard Package 2 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.39.0001
Win Source Part Number 387712-UM8401
Ultra Librarian 3D Model Ultra Librarian UM8401 CAD Model

Description

The 387712-UM8401 is a low pass EMI/RFI filter from Union Semiconductor. It is designed for data lines in mobile devices and comes in a compact size of 0.157" L x 0.063" W (4.00mm x 1.60mm).

  • Channels: 8
  • Attenuation: -31.5dB @ 800MHz, 25dB @ 2 ~ 5GHz
  • Cutoff Frequency: 150MHz
  • Temperature Range: -40°C to 85°C
  • Technology: RC (Pi)
  • ESD Protection: Yes
  • Mounting: Surface Mountable
  • Package: Tape & reel with an exposed pad
