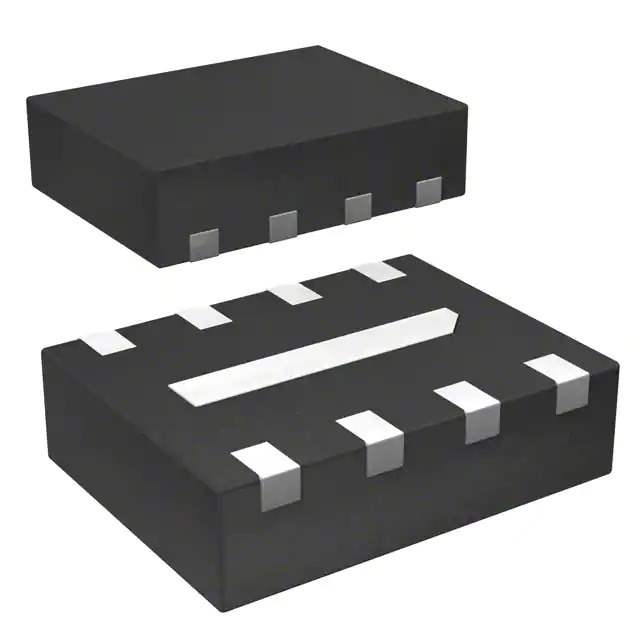

UM4411

Name: UM4411
Brand: Union Semiconductor
SKU: 694476
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UM4411
Manufacturer	Union Semiconductor
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	4-Line RC EMI Filter with TVS
Datasheet	UM4411 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - EMI/RFI Filters (LC, RC Networks)
Mfr	Union Semiconductor
Package	Tape & Reel
Product Status	Active
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	4
Center / Cutoff Frequency	150MHz (Cutoff)
Attenuation Value	-36dB @ 800MHz, -32dB @ 2 ~ 5GHz
Values	R = 100Ohm, C = 10pF
ESD Protection	Yes
Temperature Range - Operating	-40°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage - Rated	5V
Mounting Type	Surface Mount
Package / Case	8-UFDFN
Size / Dimension	0.067" L x 0.051" W (1.70mm x 1.30mm)
Height	0.024" (0.60mm)
Standard Package	2 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	694476-UM4411
Ultra Librarian 3D Model	Ultra Librarian UM4411 CAD Model

Alternative Products

Description

The 694476-UM4411 is a Low Pass filter from Union Semiconductor.

Type: Low Pass filter
Manufacturer: Union Semiconductor
Application: EMI/RFI filtering in data lines for mobile devices
Size: 0.067" L x 0.051" W (1.70mm x 1.30mm)
Cutoff Frequency: 150MHz
Channels: 4
Attenuation @ 800MHz: -36dB
Attenuation @ 2 ~ 5GHz: -32dB
Technology: RC (Pi)
Resistance: 100Ohm
Capacitance: 10pF
Package: 8-UFDFN (Surface Mount)
