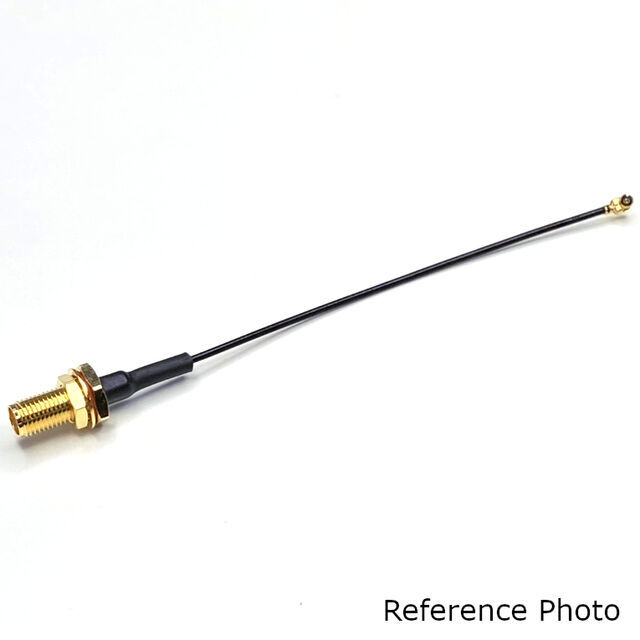

Same model may have multiple batches, images only for reference.
SMABJAU0.1MHFI-1.13 TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMABJAU0.1MHFI-1.13

Part No SMABJAU0.1MHFI-1.13
Manufacturer TYCLON
Catalog Coaxial Cables (RF)
Description Cable Assembly Coaxial I-PEX MHF1 to SMA 1.13mm OD Coaxial Cable 5.906" (150.00mm)
Datasheet
SMABJAU0.1MHFI-1.13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Style I-PEX MHF1 to SMA
1st Connector SMA Jack
1st Contact Gender Female
1st Connector Mounting Type Panel Mount
1st Connector Mounting Feature Bulkhead - Front Side Nut
2nd Connector I-PEX MHF1 Plug, Right Angle
2nd Contact Gender Female
2nd Connector Mounting Type Free Hanging (In-Line)
Length 5.906" (150.00mm)
Cable Type 1.13mm OD Coaxial Cable
Cable Impedance 50 Ohms
Connector Impedance 50 Ohms
Overall Impedance 50 Ohms
Color Black
Grade -
Ultra Librarian 3D Model Ultra Librarian SMABJAU0.1MHFI-1.13 CAD Model
