MCX-J-EL(75 OHM) TYCLON – Price, Stock & Datasheet

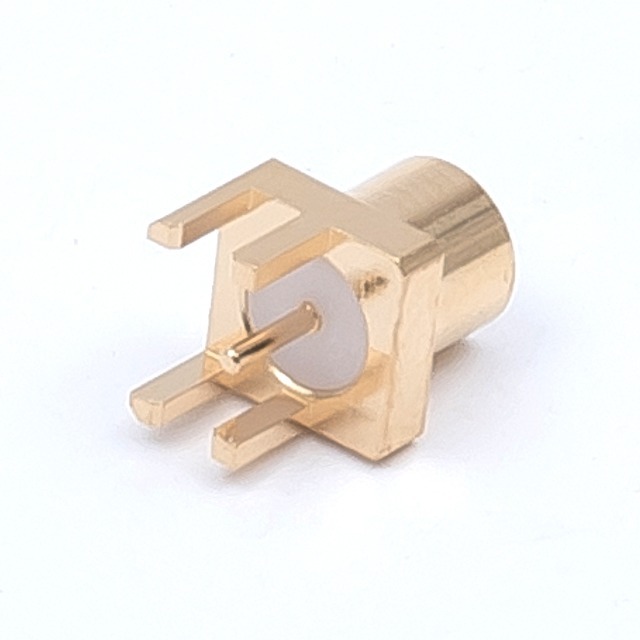

Same model may have multiple batches, images only for reference.

MCX-J-EL(75 OHM)

Part No MCX-J-EL(75 OHM)
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Terminators
Description MCX Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
Datasheet
MCX-J-EL(75 OHM) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Connector Style MCX
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75 Ohms
Mounting Type Board Edge, End Launch
Fastening Type Snap-On
Frequency - Max 3GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Ultra Librarian 3D Model Ultra Librarian MCX-J-EL(75 OHM) CAD Model
