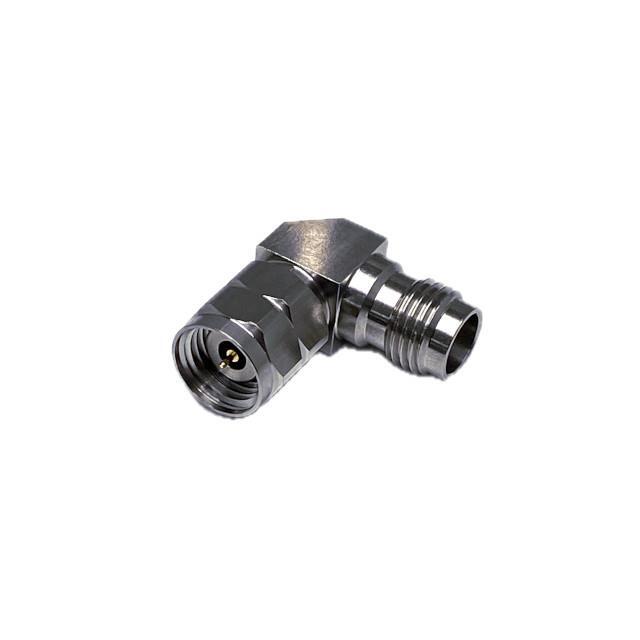

Same model may have multiple batches, images only for reference.

2.4-LA-PJ

Get a Quote

Part No	2.4-LA-PJ
Manufacturer	TYCLON
Catalog	Coaxial Connectors (RF) - Adapters
Description	Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
Datasheet	2.4-LA-PJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Package	Retail Package
Product Status	Active
Adapter Type	Plug to Jack
Conversion Type	Same Series
Adapter Series	2.4mm to 2.4mm
Center Gender	Male to Female
Convert From (Adapter End)	2.4mm (APC-2.4, OS-50) Plug, Male Pin
Convert To (Adapter End)	2.4mm (APC-2.4, OS-50) Jack, Female Socket
Impedance	50 Ohms
Style	Right Angle
Mounting Type	Free Hanging (In-Line), Right Angle
Fastening Type	Threaded
Frequency - Max	50Ghz
Center Contact Plating	Gold
Ultra Librarian 3D Model	Ultra Librarian 2.4-LA-PJ CAD Model
