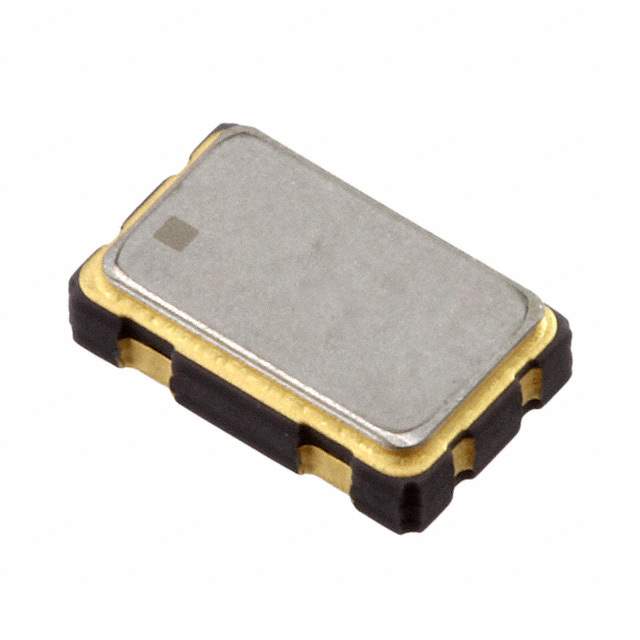

ACZ-32.768KBE-T Real Image
Same model may have multiple batches, images only for reference.

ACZ-32.768KBE-T

Part No ACZ-32.768KBE-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC XO 32.7680KHZ CMOS SMD / 32.768 kHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ACZ-32.768KBE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr TXC CORPORATION
Series ACZ
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 32.768 kHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 20mA
Ratings AEC-Q100
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names ACZ32768KBET,887-1670-1,887-1670-2,3003-ACZ-32.768KBE-T,887-1670-6
Standard Package 1,000
Win Source Part Number 1042636-ACZ-32.768KBE-T
Ultra Librarian 3D Model Ultra Librarian ACZ-32.768KBE-T CAD Model

Description

The TXC CORPORATION 1042636-ACZ-32.768KBE-T is a CMOS output XO standard oscillator designed for use in various electronic applications.

  • Frequency: 32.768 kHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Mode: Enable/Disable
  • Voltage Supply: 3.3V
  • Package: 4-SMD, no lead
  • Mounting: Surface mount
  • Packaging: Tape and reel
  • Standard Package: 1,000
  • Series: ACZ
