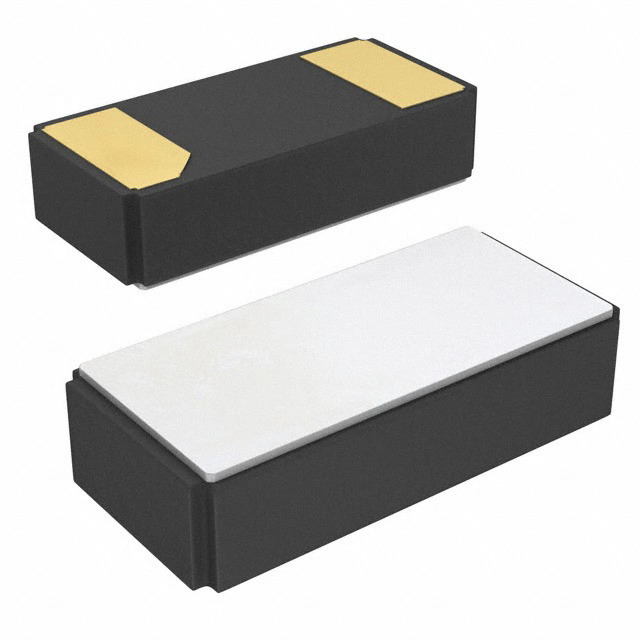

9H03200031 TXC CORPORATION 9H03200031 Real Image 9H03200031 label picture
Same model may have multiple batches, images only for reference.
9H03200031 TXC CORPORATION 9H03200031 Real Image 9H03200031 label picture
9H03200031 TXC CORPORATION 9H03200031 Real Image 9H03200031 label picture
Same model may have multiple batches, images only for reference.

9H03200031

Part No 9H03200031
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 32.768KHZ 12.5PF SMD
Datasheet
9H03200031 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TXC CORPORATION
Packaging Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Maximum) 0.033" (0.85mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800971-9H03200031
Ultra Librarian 3D Model Ultra Librarian 9H03200031 CAD Model

Description

The TXC Corporation kHz crystal oscillator is a high-quality electronic component that is designed to provide accurate and reliable timing signals.

  • Family: Oscillators
  • Frequency: 32.768kHz
  • ESR: 70 kOhms
  • Packaging: Reel
  • Dimension: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Operating Temperature: -40°C to 85°C
  • Manufacturer Package: 2-SMD, No Lead
  • Height: 0.033" (0.85mm)
