Same model may have multiple batches, images only for reference.

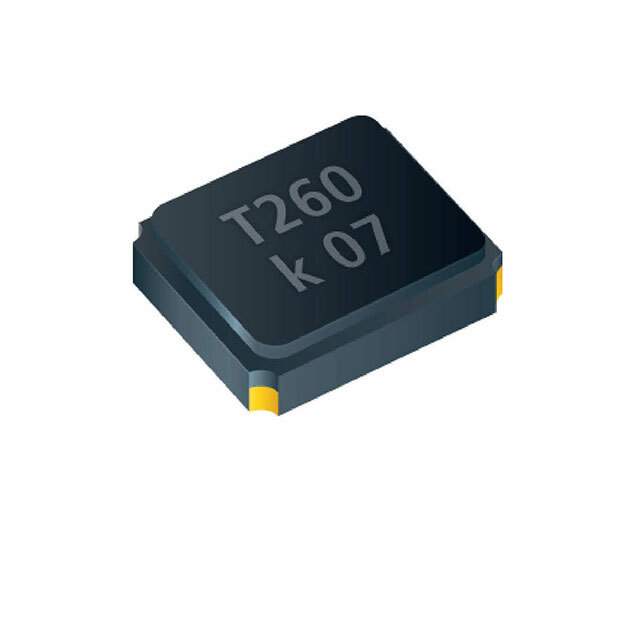

7V-18.432MAHE-T Real Image
Same model may have multiple batches, images only for reference.

7V-18.432MAHE-T

Part No 7V-18.432MAHE-T
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 18.4320MHZ 12PF SMD / 18.432 MHz ±30ppm Crystal 12pF 60 Ohms 4-SMD, No Lead
Datasheet
7V-18.432MAHE-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7V
Package Tape & Reel
Type MHz Crystal
Frequency 18.432 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1336963-7V-18.432MAHE-T
Ultra Librarian 3D Model Ultra Librarian 7V-18.432MAHE-T CAD Model

Description

This MHz crystal is a high-quality component that is perfect for use in electronic devices that require precise frequency control.

  • Manufacturer: TXC Corporation
  • Frequency: 18.432 MHz
  • ESR: 60 Ohms
  • Frequency Stability: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 12pF
  • Package: tape and reel
  • Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 3,000
