Same model may have multiple batches, images only for reference.

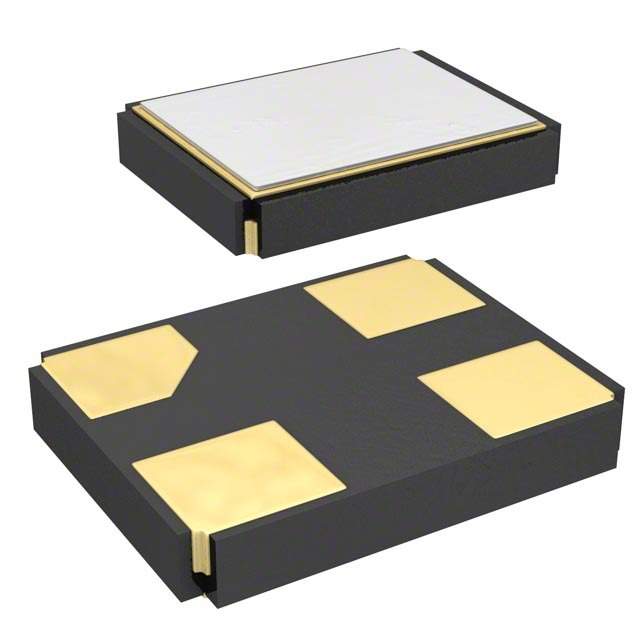

7L26001018 Real Image
Same model may have multiple batches, images only for reference.

7L26001018

Part No 7L26001018
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC TCXO 26.0000MHZ SNWV / 26 MHz TCXO Clipped Sine Wave Oscillator 2.8V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer TXC CORPORATION
Packaging Reel - TR
Base Resonator Crystal
Type TCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 2.8V
Frequency Stability ±2ppm
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1328150-7L26001018
Ultra Librarian 3D Model Ultra Librarian 7L26001018 CAD Model

Description

The TXC CORPORATION 1328150-7L26001018 is a TCXO oscillator that operates ata frequency of 26 MHz.

  • Mounting Type: Surface Mount
  • Package: 4-SMD, no lead
  • Output: Clipped Sine Wave
  • Frequency Stability: ±2ppm
  • Voltage Supply: 2.8V
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • ROHS: Compliant
  • Length: 0.098 inches
  • Width: 0.079 inches
  • Height: 0.031 inches when seated
  • Packaging: Reel package with 3,000 units
