Same model may have multiple batches, images only for reference.

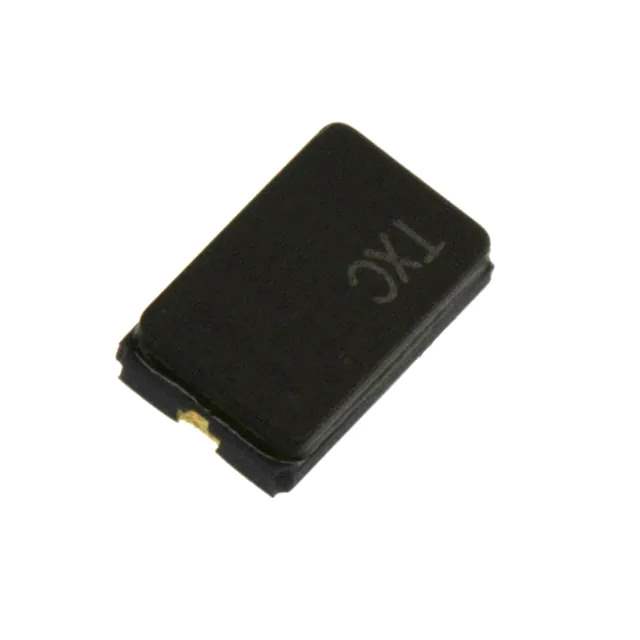

7A24000012 Real Image
Same model may have multiple batches, images only for reference.

7A24000012

Part No 7A24000012
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 16PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 16pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 858270-7A24000012
Ultra Librarian 3D Model Ultra Librarian 7A24000012 CAD Model

Description

The 858270-7A24000012 is a MHz Crystal from the 7A series of crystals, oscillators, and resonators.

  • Series: 7A
  • Category: Crystals, Oscillators, and Resonators
  • Mounting: Surface Mount
  • Package: 2-SMD, No Lead
  • Frequency: 24 MHz
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Load Capacitance: 16pF
  • Operating Mode: Fundamental
  • Operating Temperature Range: -20°C to 85°C
  • Manufacturer: TXC CORPORATION
